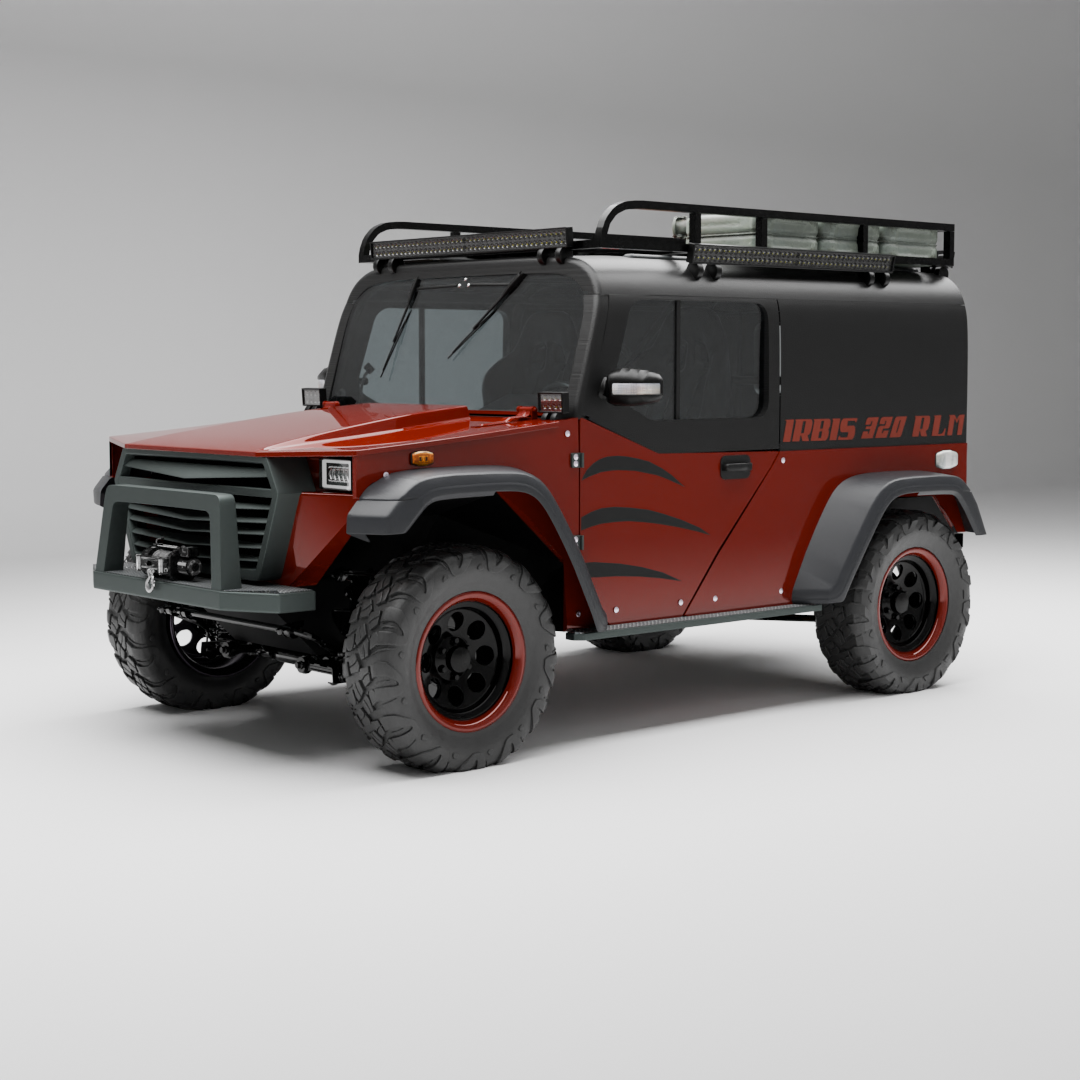

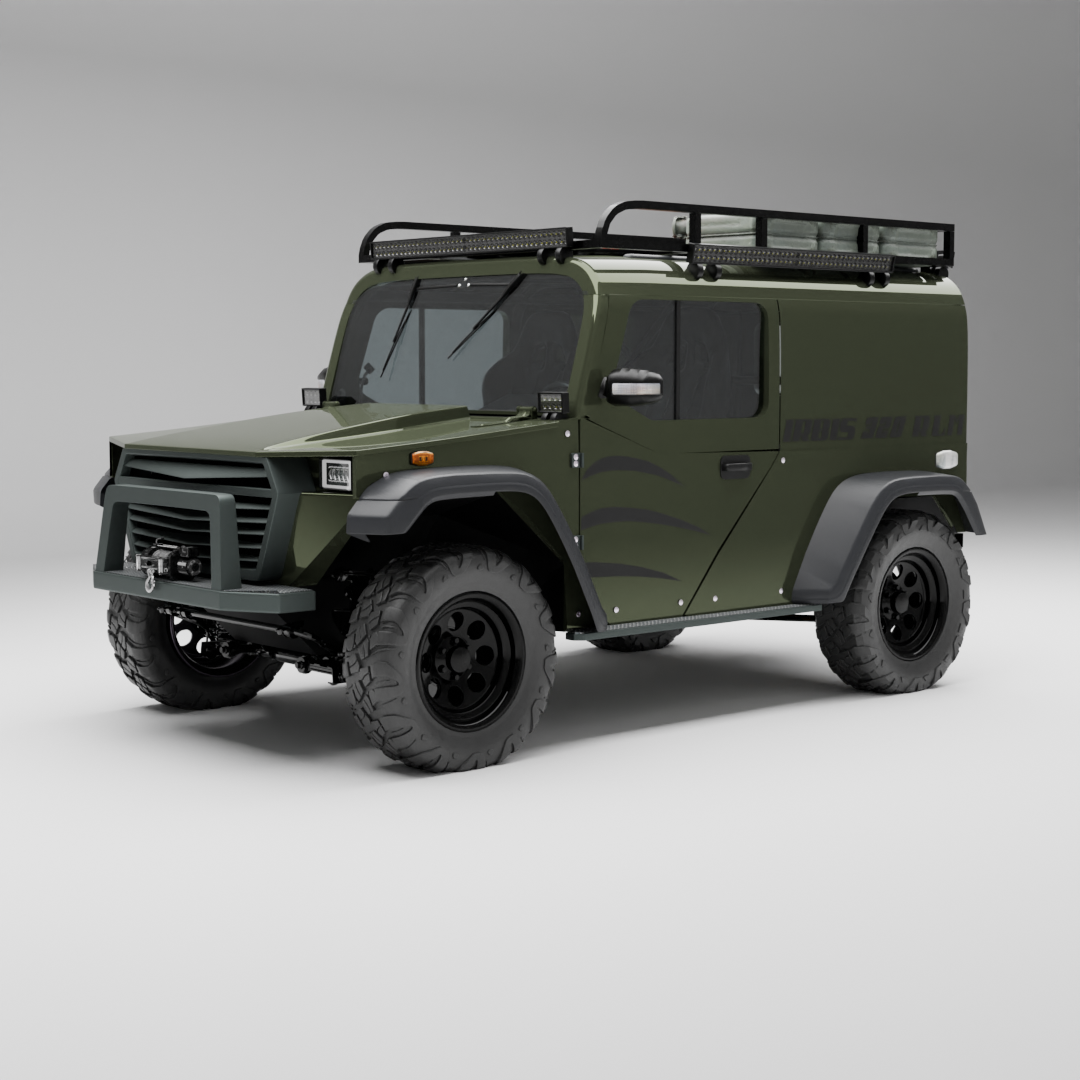

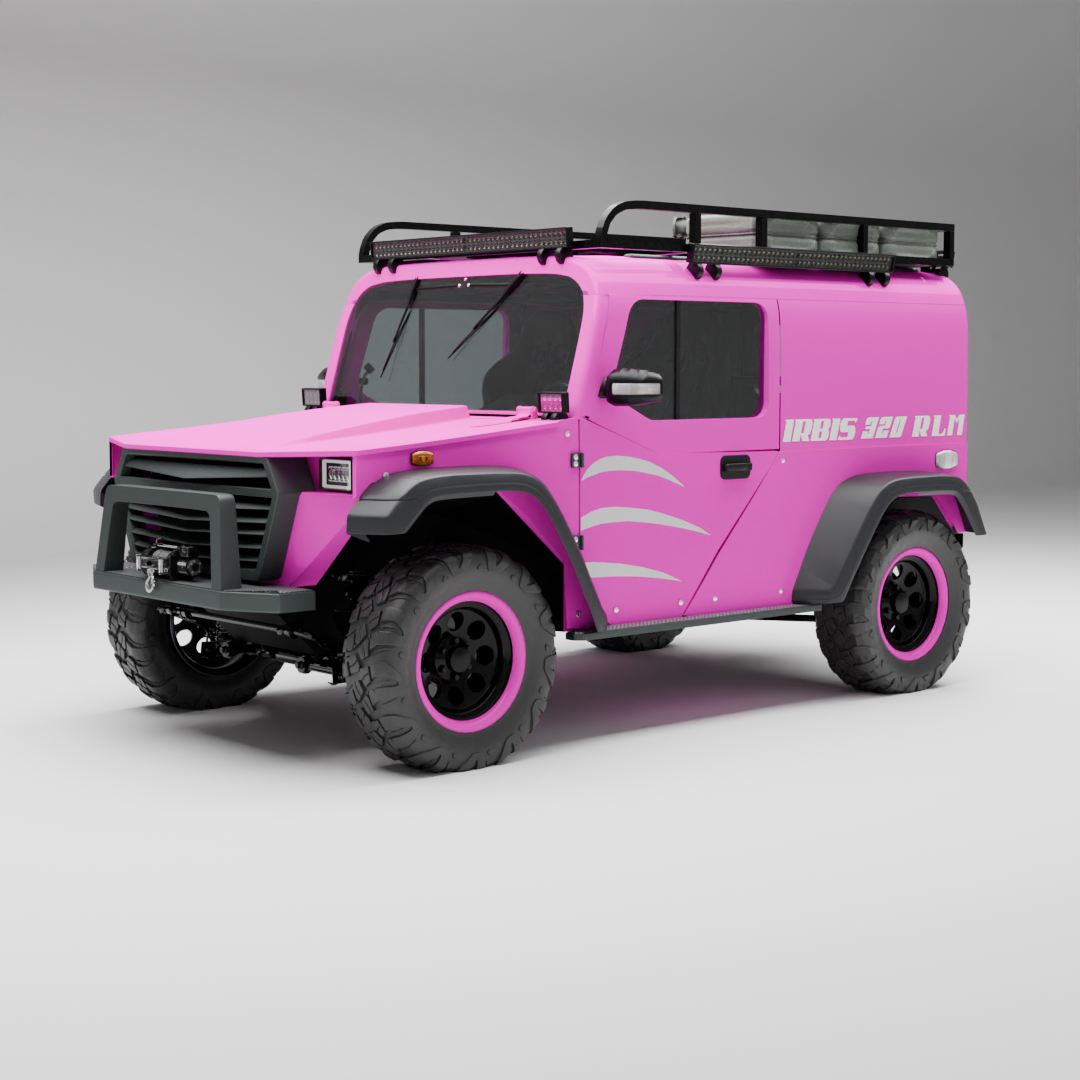

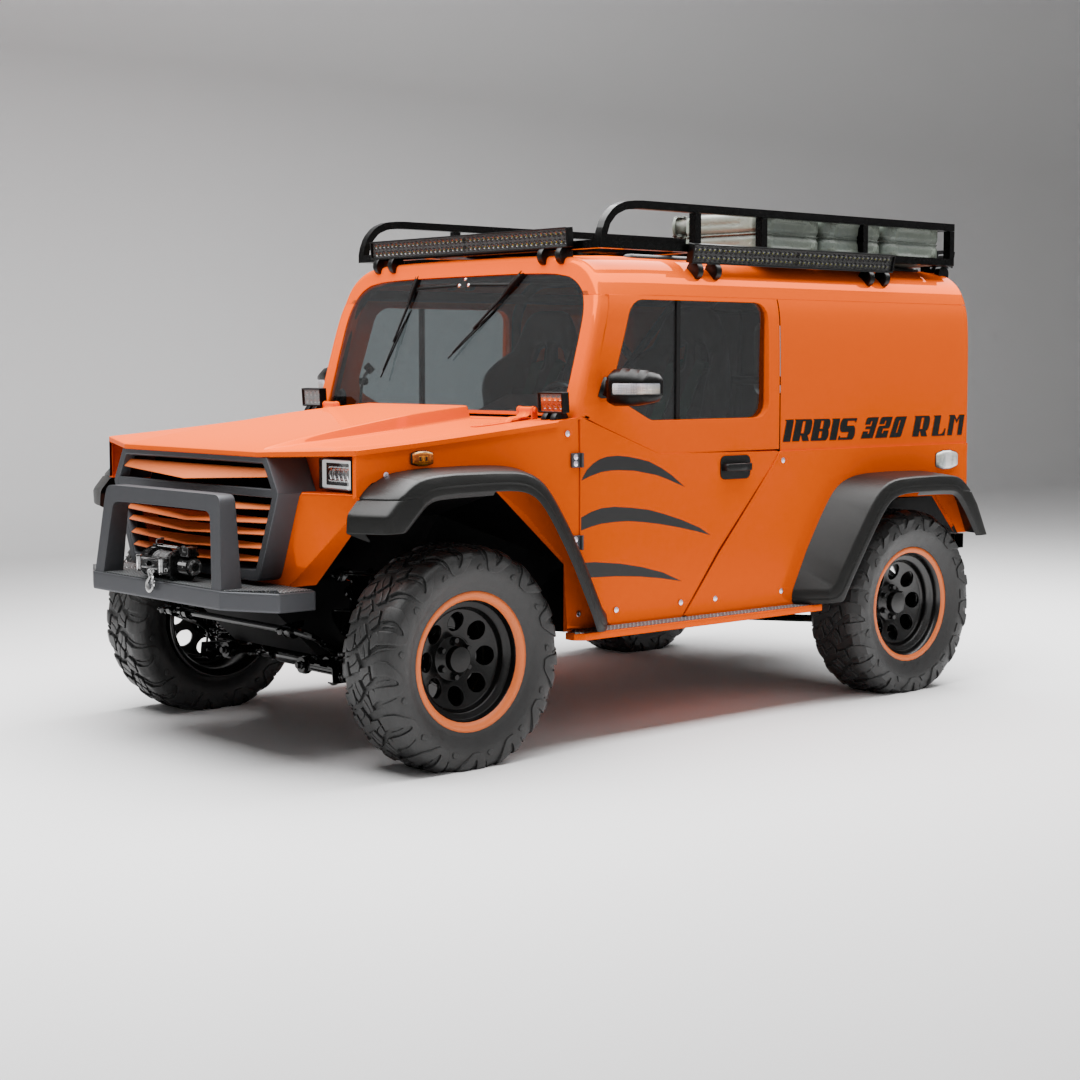

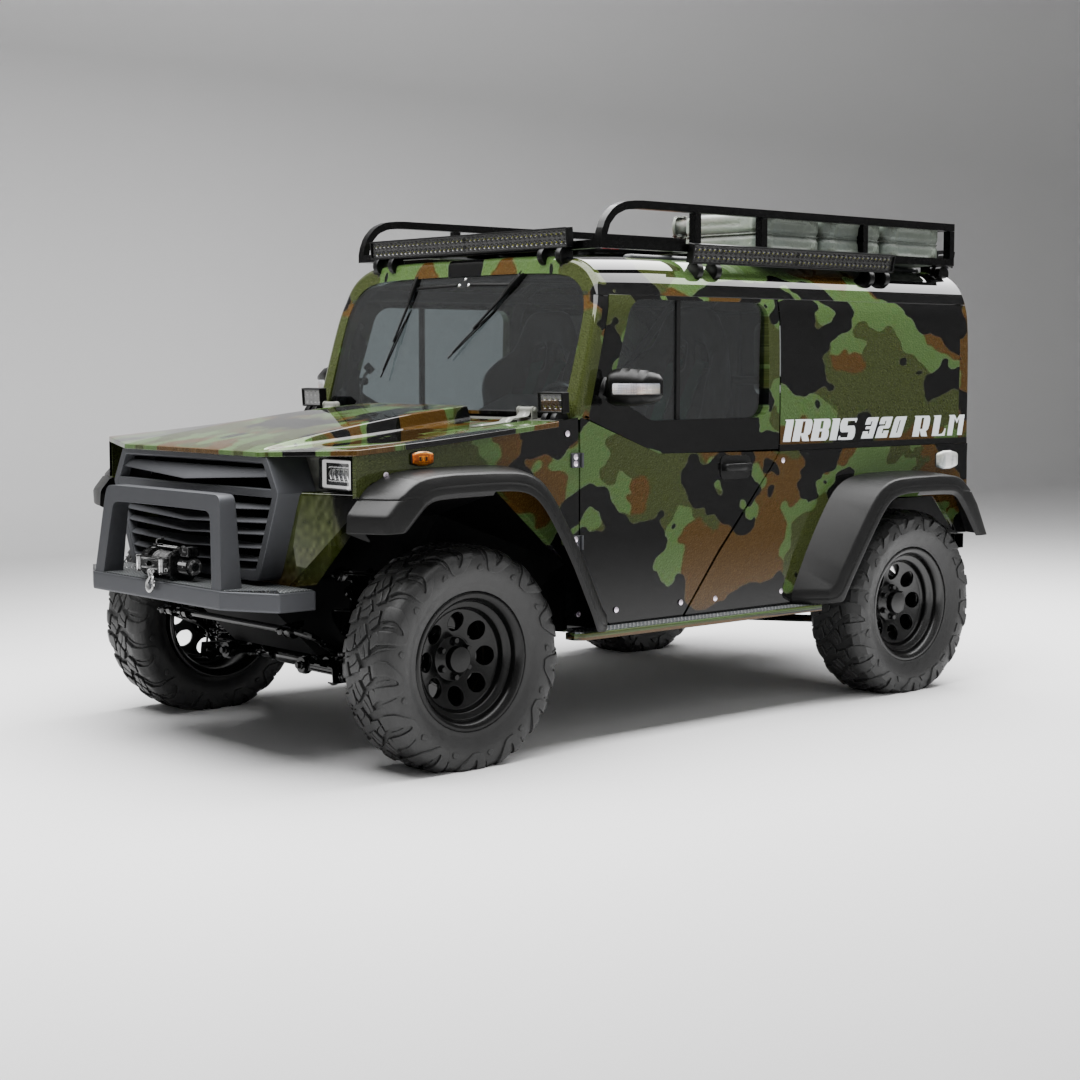

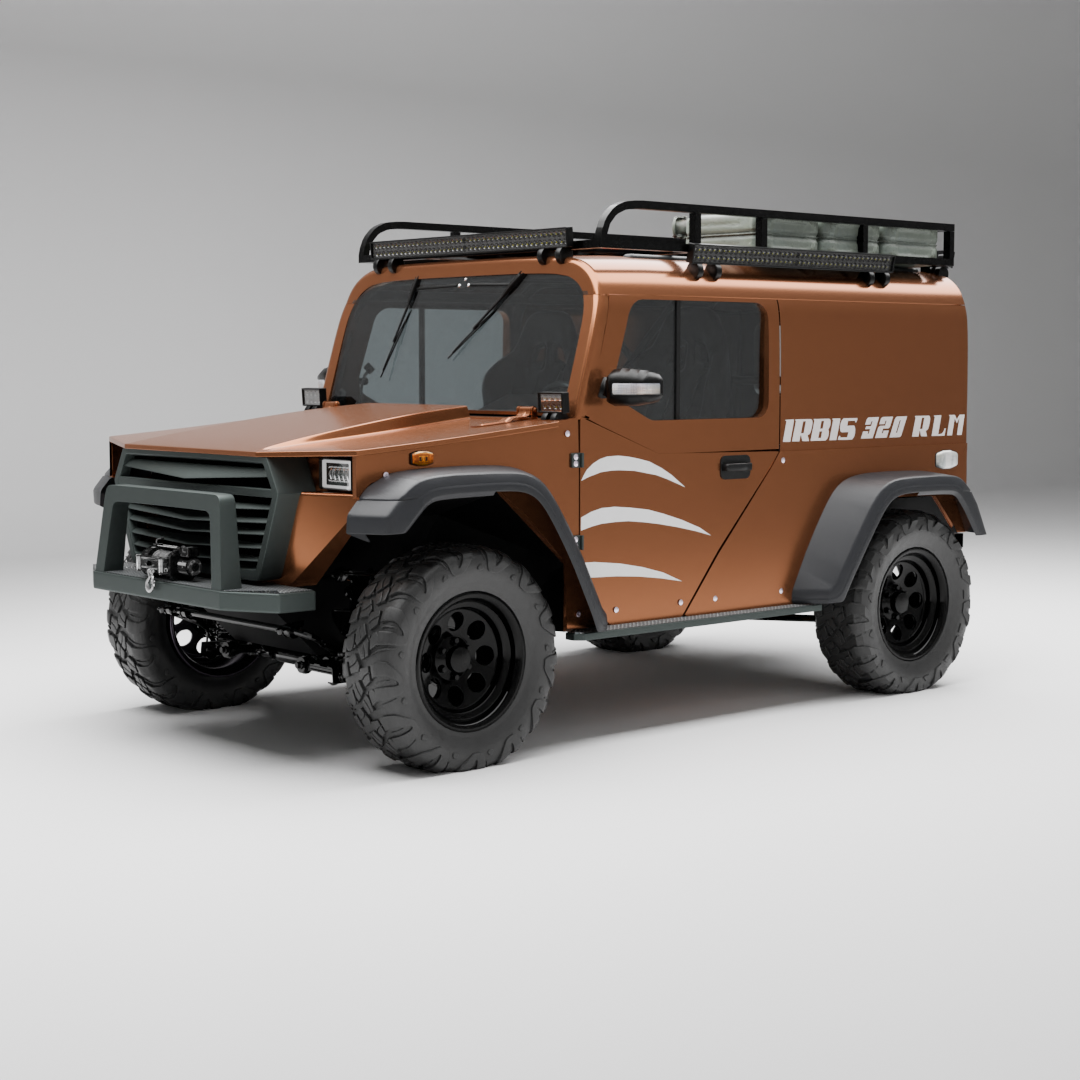

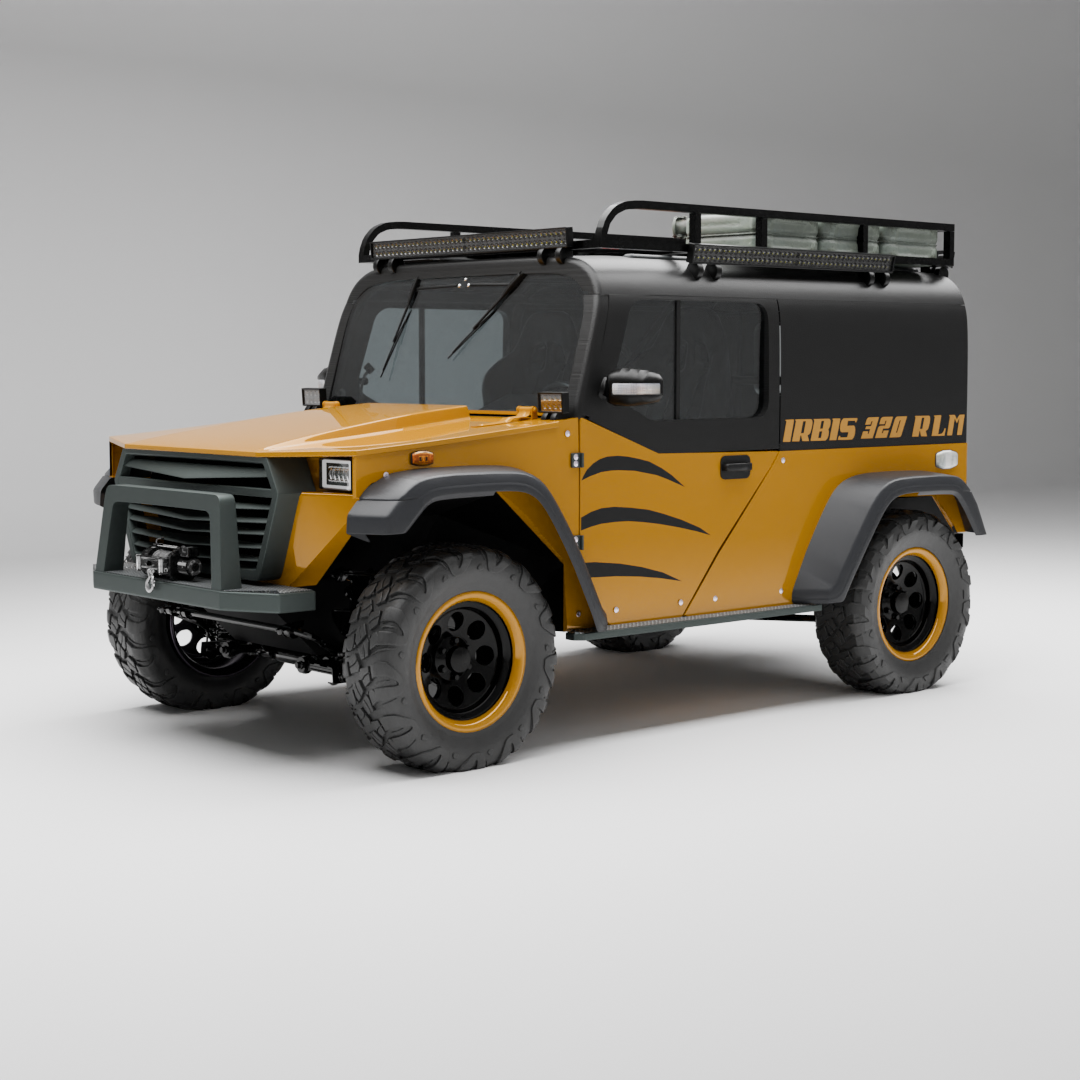

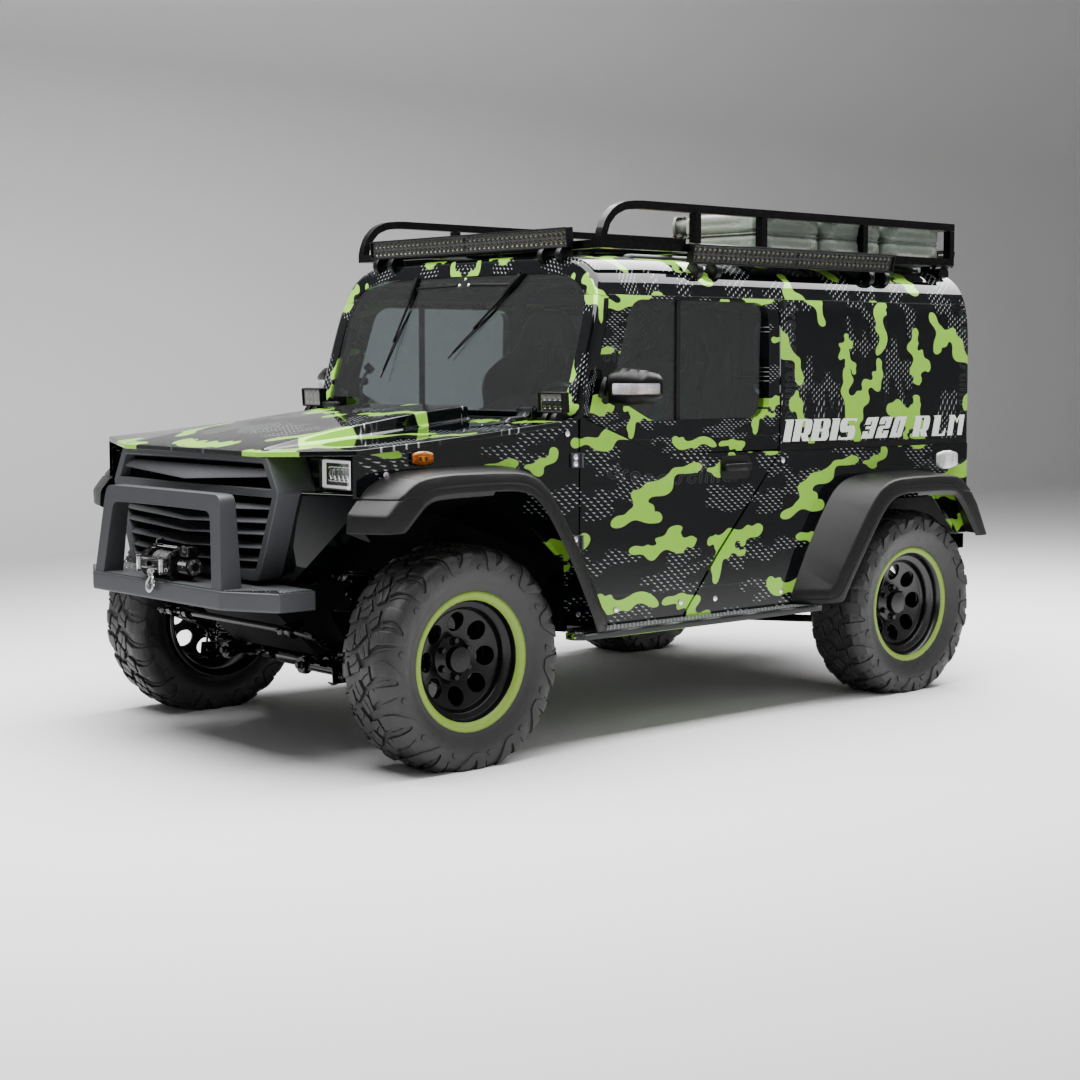

IRBIS 320RLM — Off-Road Vehicle for Travel and Expeditions

Power
82,9 hp

PAYLOAD CAPACITY
500 kg

GROUND CLEARANCE
220-250 mm

MAXIMUM COMFORT. MAXIMUM OFF-ROAD CAPABILITY — THE IRBIS 320 RLM IS BUILT FOR TRUE EXPEDITIONS

Interested in this model?

IRBIS 320 RLM IS IDEAL FOR:

Expedition and exploration routes

Tourism and outdoor adventures

Hunting

Fishing

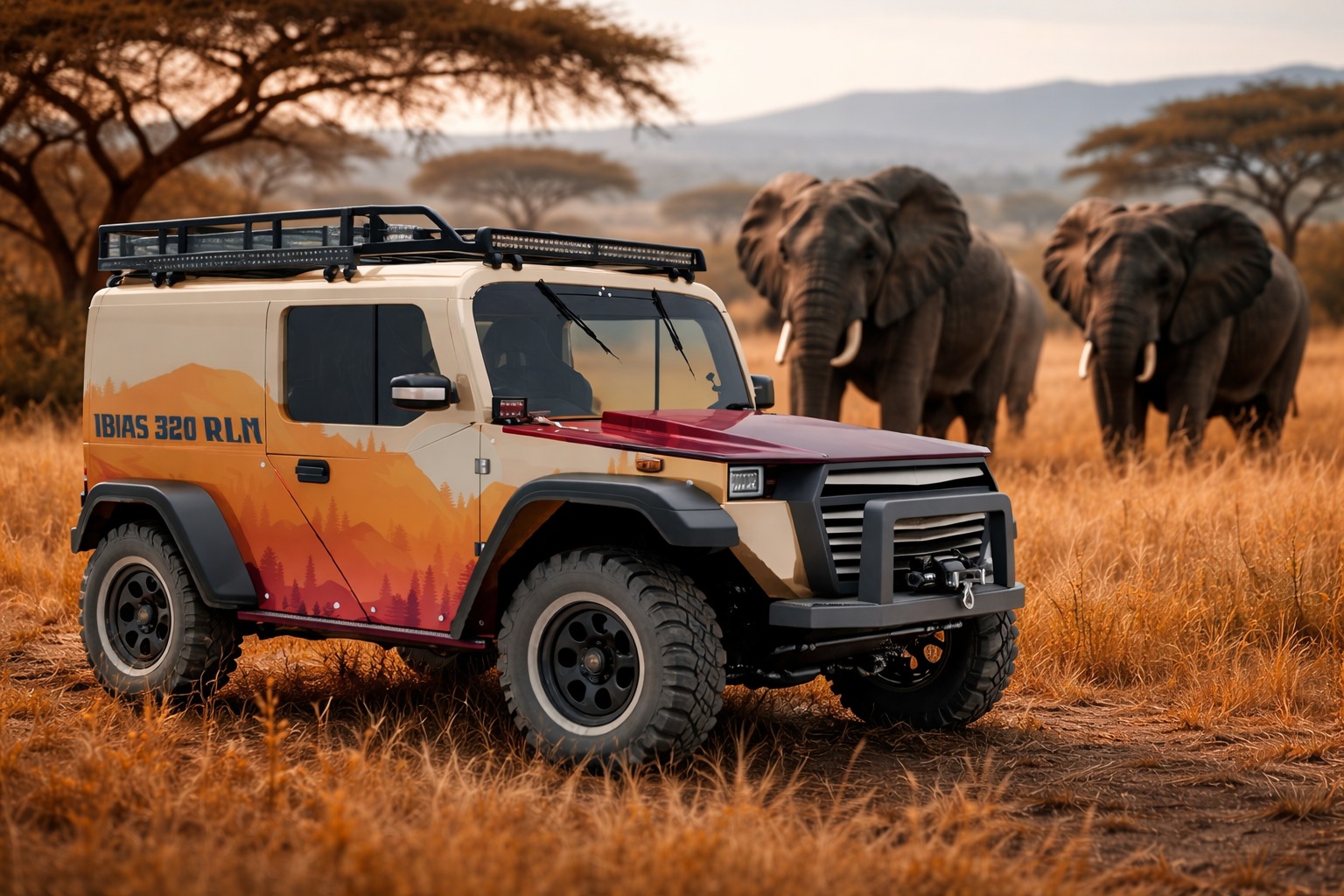

Park hotels, safari tours, and glamping resorts

Patrol and security operations

Choose a Project Created Specifically for You

We will build an off-road buggy tailored to your goals.

Our engineering and design center will help you create a vehicle that fully matches your requirements. Whether you need a powerful off-road machine, a comfortable travel vehicle, or a reliable work platform, we adapt every project to your needs — from exterior styling to technical specifications. we adapt every project to your needs — from exterior styling to technical specifications. You receive a unique off-road vehicle that reflects your tasks, preferences, and personal style.

Technical Specifications IRBIS 320 RLM

General Specifications

Crew Capacity 2

Dimensions (LxWxH), mm 3400х1680х1800

Wheelbase, mm 2200

Ground Clearance, mm 220-250

Curb Weight, kg 1100

Fuel Tank Capacity, L 42

Approach Angle 70

Departure Angle 40

Breakover Angle 28

Performance Specifications

Payload Capacity, kg 500

Maximum Trailer Weight, kg 600

Winch Pulling Force, kg 1225

Maximum Speed, km/h 120

Fuel Consumption per 100 km 8.3 L highway / 12.1 L city / 9.9 L combined

Technical Characteristics

Engine Type / Displacement Inline 4-cylinder gasoline engine, VAZ-21214, 1.7 L

Engine Power 82,9

Torque 129

Transmission 5-speed manual transmission

Front Suspension Independent double-wishbone spring suspension with telescopic shock absorbers and anti-roll bar

Rear Suspension Dependent suspension (solid axle with four longitudinal links and one transverse link, cylindrical springs, and telescopic shock absorbers)

Front Suspension Travel 80 mm compression / 75 mm rebound

Rear Suspension Travel 350 mm

Tire Size 235/75 R15

Contact Us Directly

For partnership inquiries, vehicle supply, pricing, or technical consultations, contact the IRBIS team directly by email: info@irbis-buggy.com

THE PERFECT BALANCE OF OFF-ROAD CAPABILITY, COMFORT, AND AUTONOMY

The IRBIS 320 RLM is a custom expedition configuration based on the IRBIS 320 platform, developed for autonomous travel, outdoor adventures, and operation in demanding conditions. The configuration combines the proven off-road platform with an enhanced level of comfort, equipment, and long-distance capability.

The vehicle is built using technologies applied in specialized utility transport, ensuring confident off-road performance, high reliability, and ease of control.

The key feature of the IRBIS 320 RLM is its plastic body and roof, which provide corrosion resistance, reduced weight, and increased durability in harsh operating conditions. Combined with expedition equipment — including additional storage systems, autonomy solutions, protective components, and advanced lighting — the configuration is fully prepared for long-distance travel and operation far from infrastructure.

Additional equipment elements and expedition options make the IRBIS 320 RLM a versatile solution for travel, expeditions, and work in remote environments.
