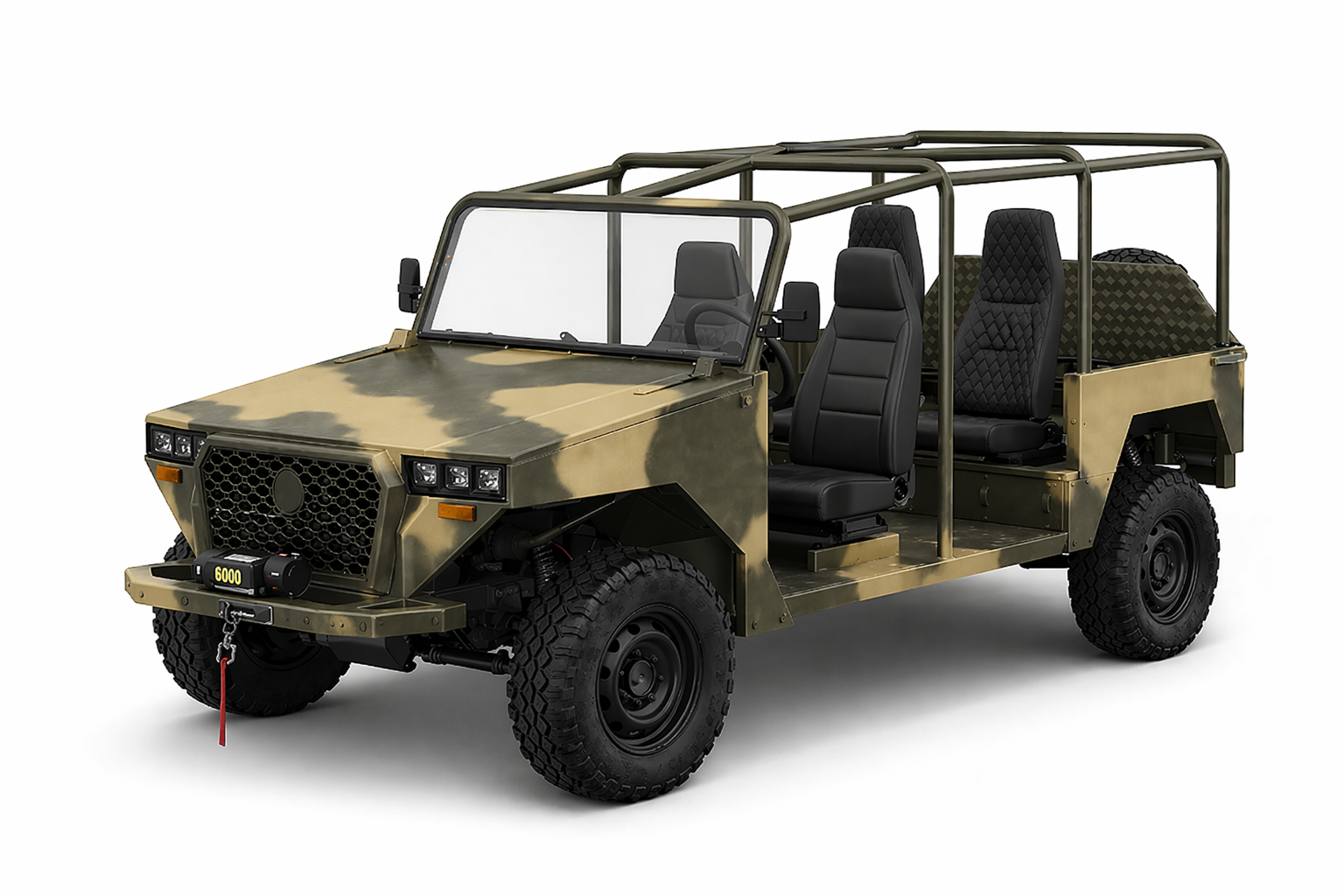

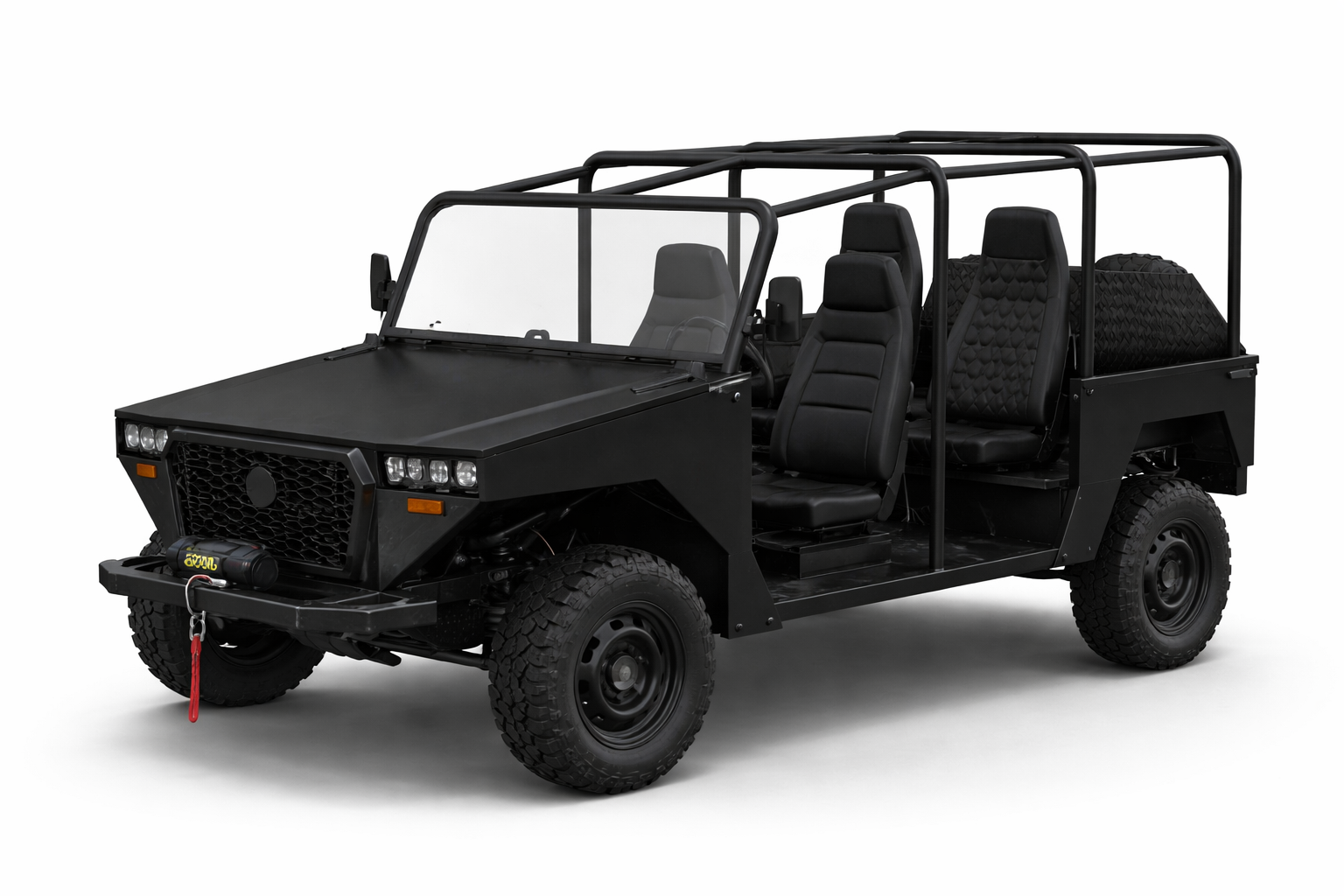

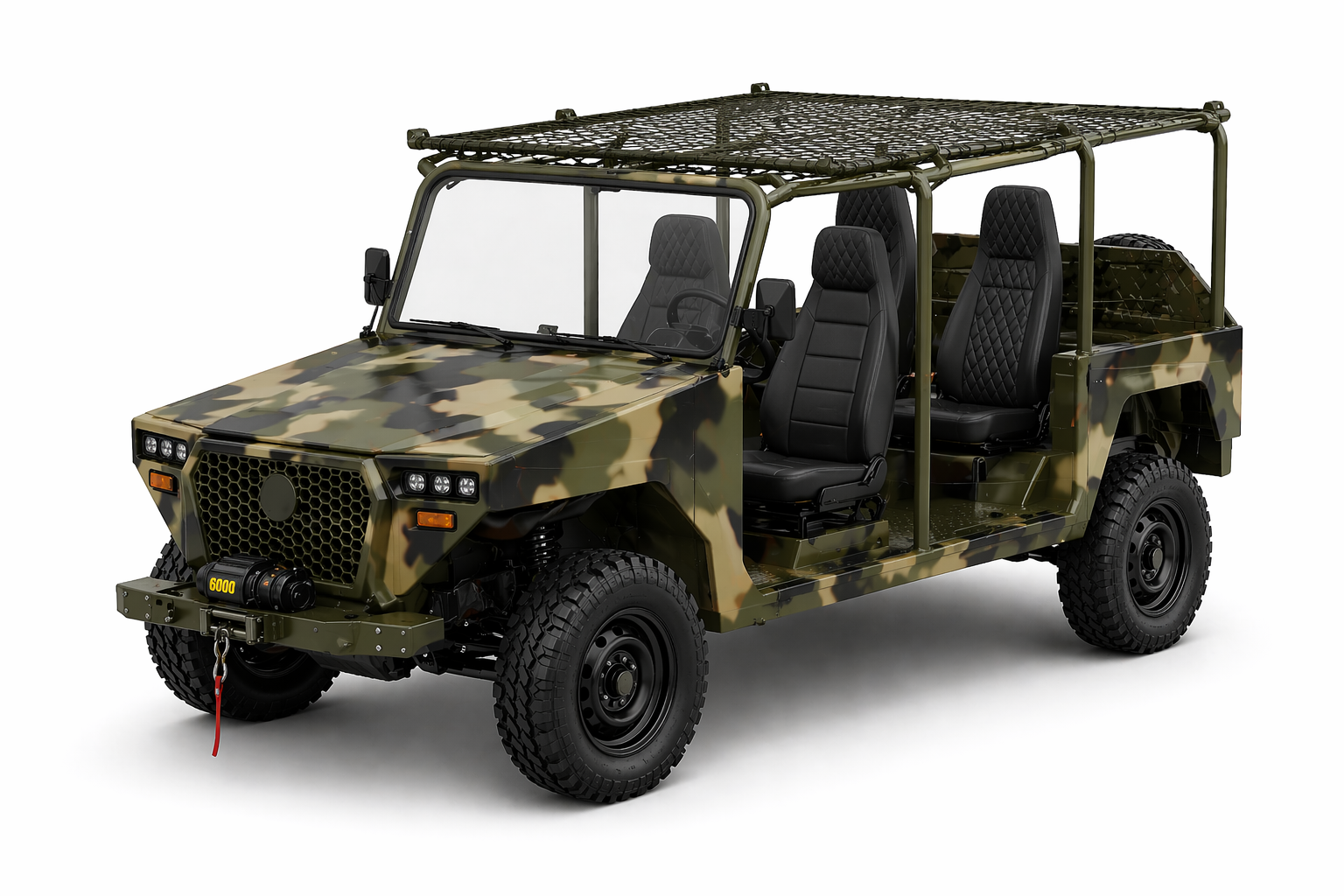

IRBIS 420 — MAXIMUM CAPACITY. MAXIMUM OFF-ROAD PERFORMANCE

Power
82,9 hp

PAYLOAD CAPACITY
500 kg

GROUND CLEARANCE
220-250 mm

IRBIS 420 — SPACE, POWER, AND FREEDOM OF MOVEMENT

Interested in this model?

IRBIS 420 IS IDEAL FOR:

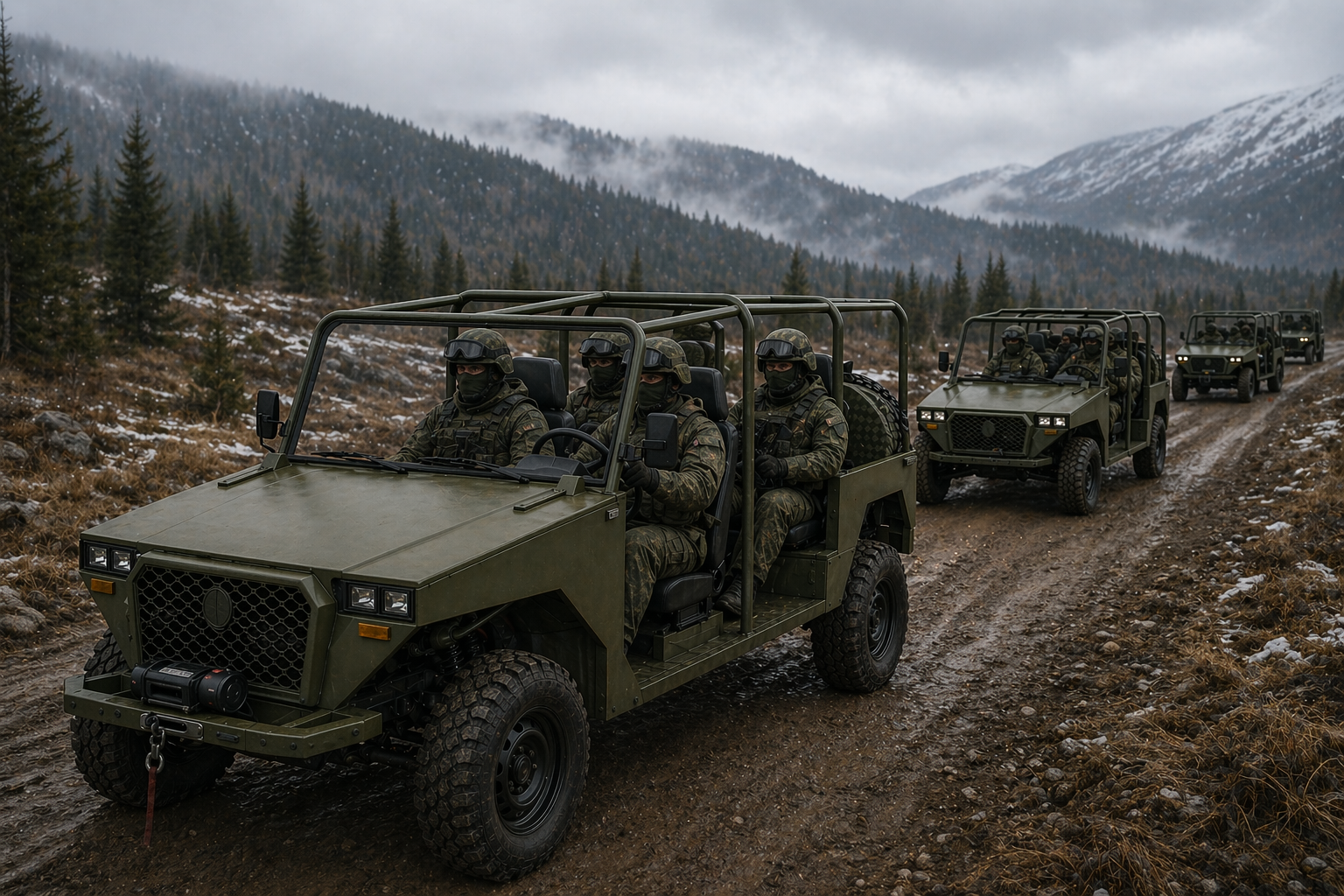

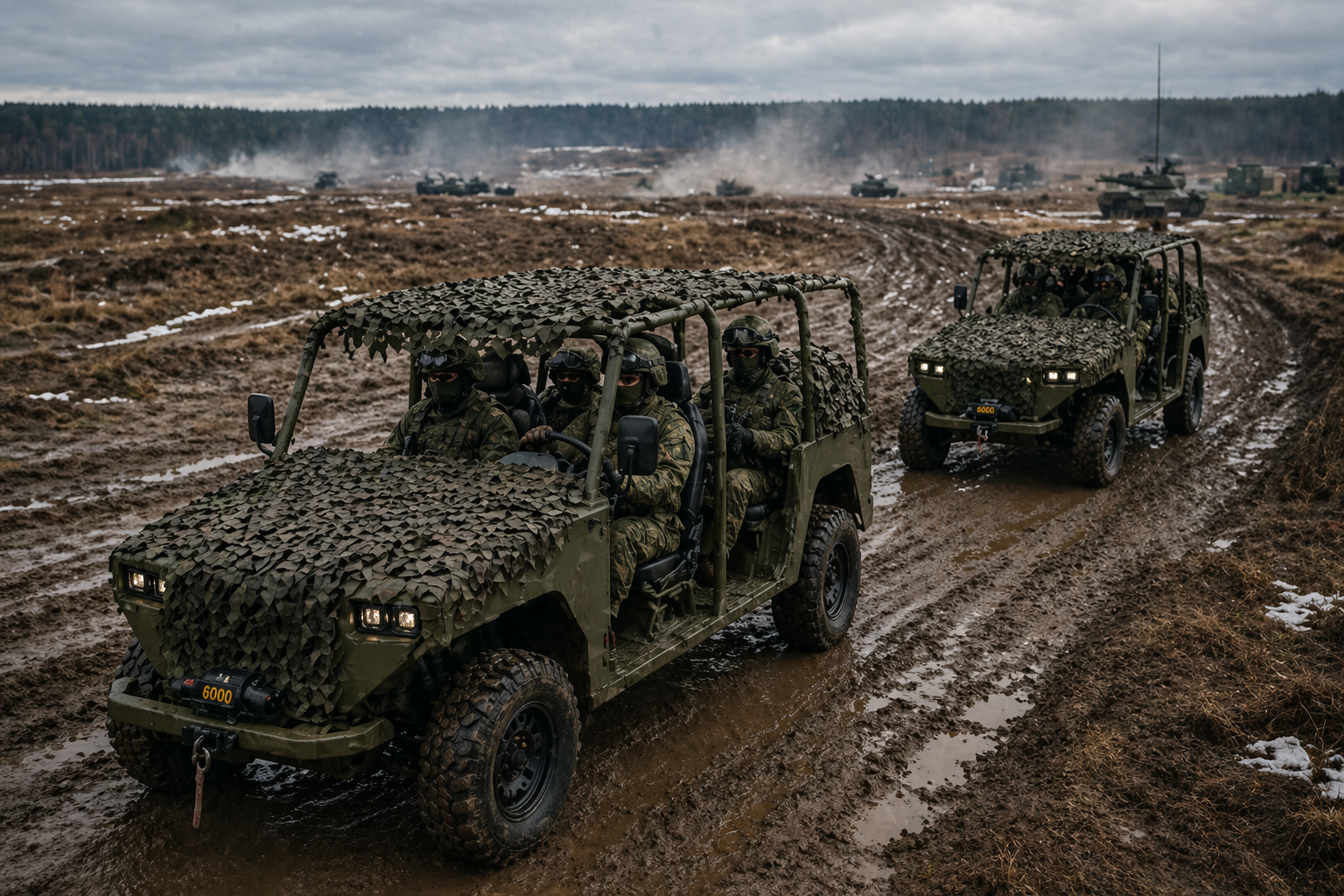

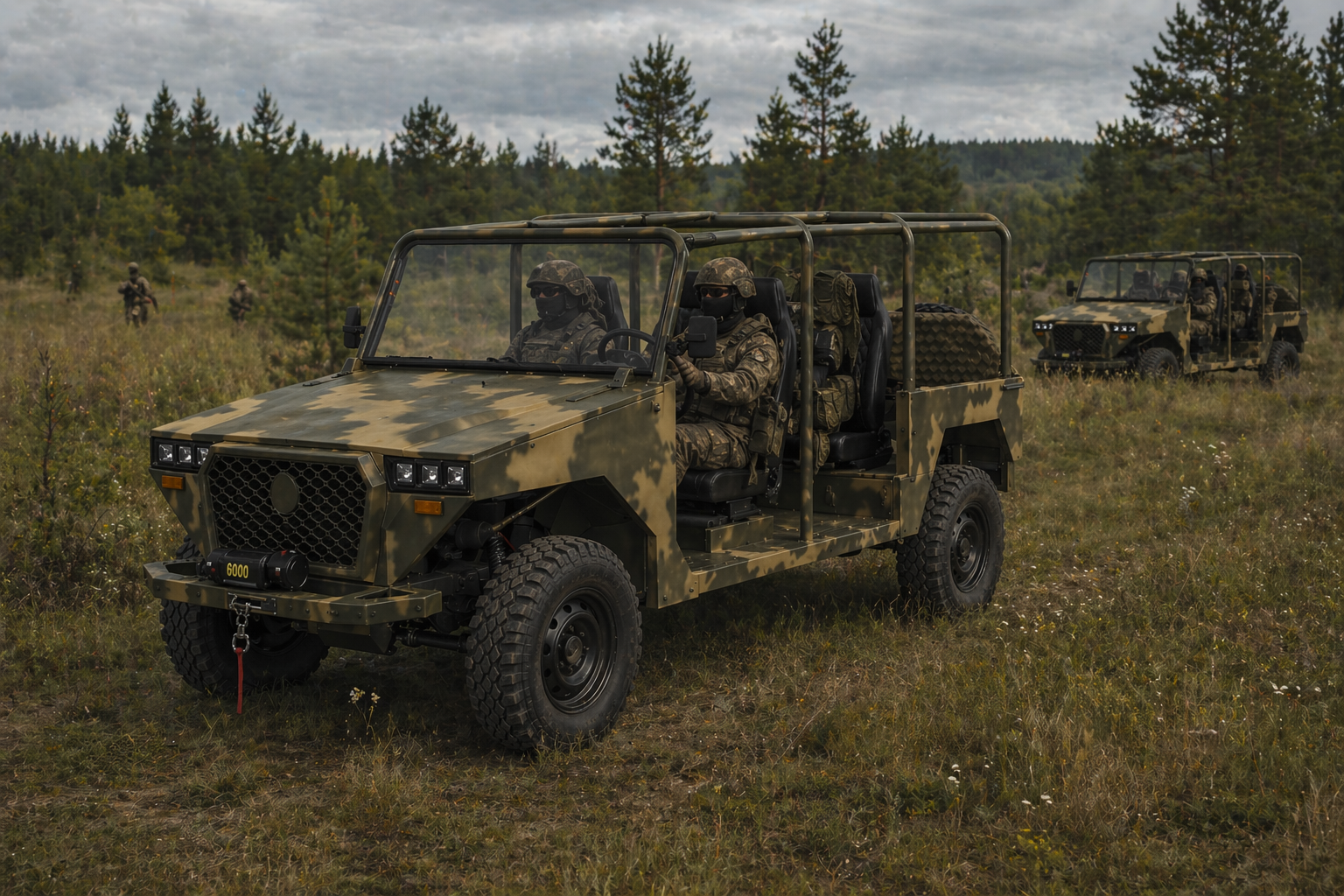

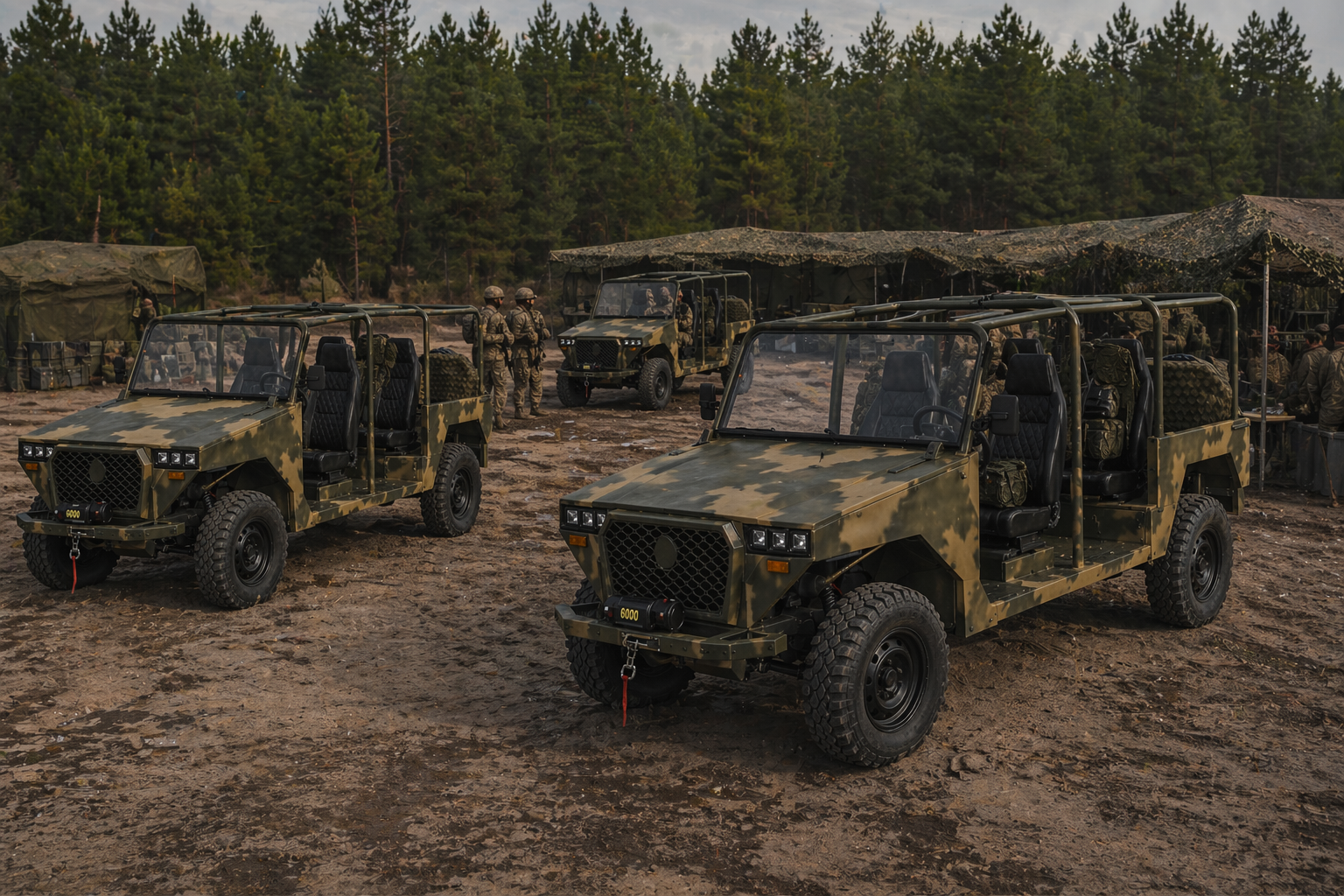

Patrol and escort operations
Patrol and escort operations
Expeditions and tourism
Expeditions and tourism

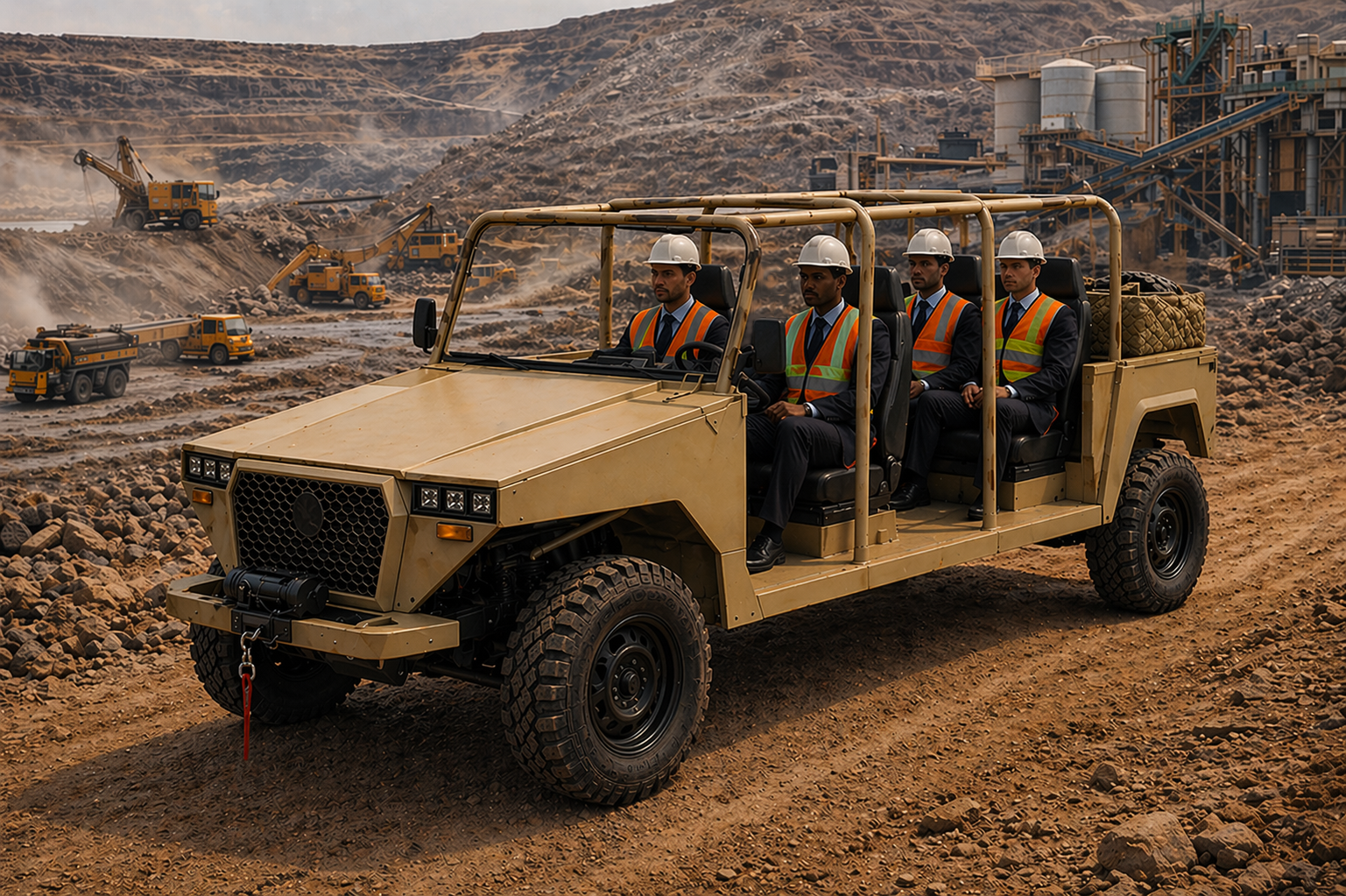

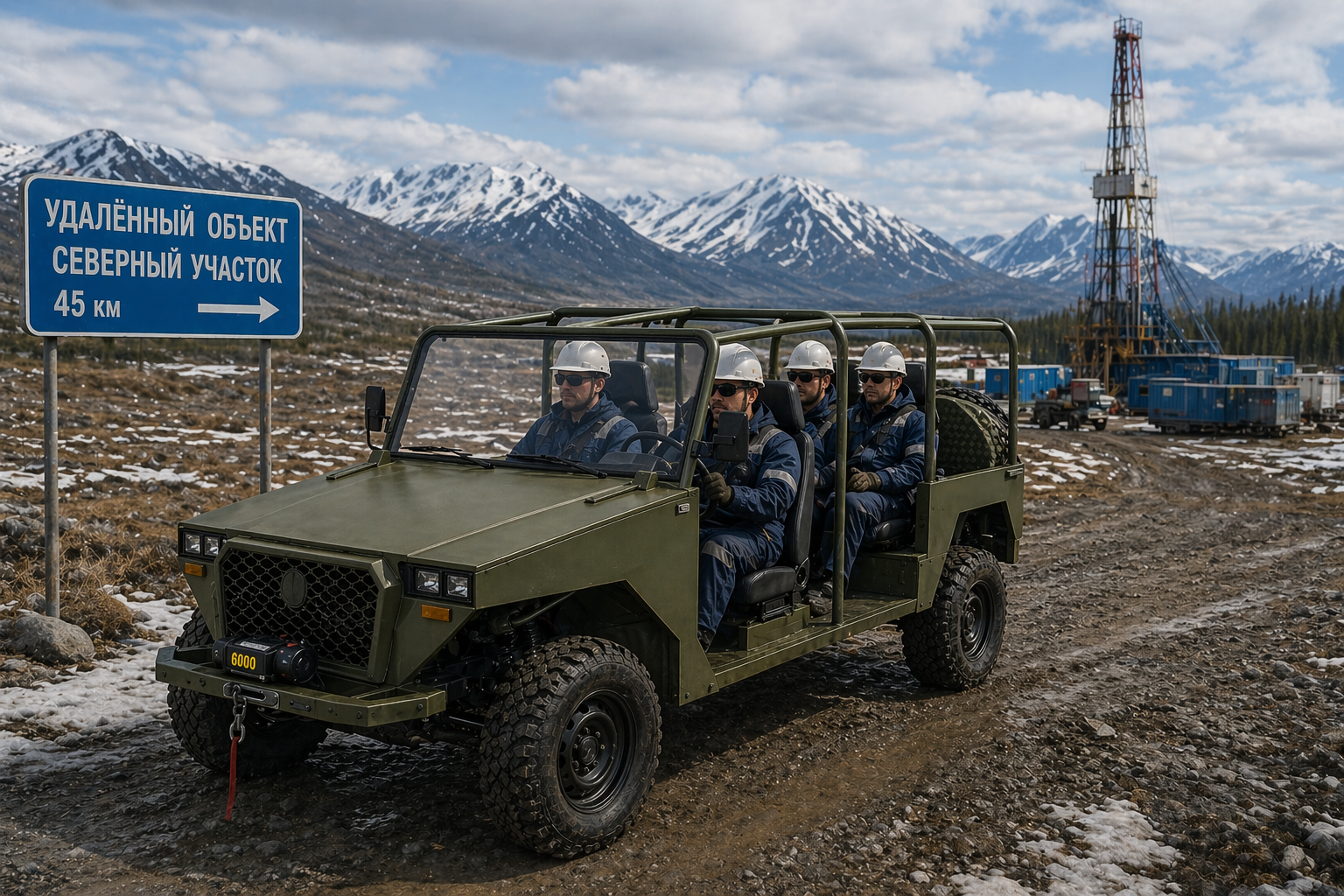

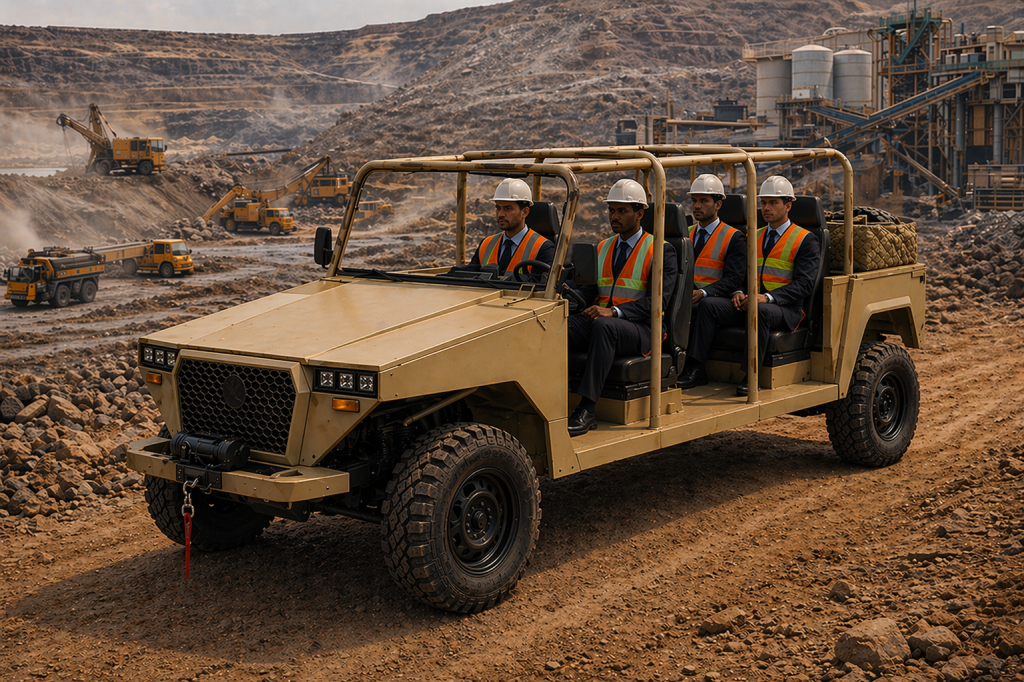

Mining and industrial companies
Mining and industrial companies
Hunting, fishing, and outdoor recreation
Hunting, fishing, and outdoor recreation
Agriculture and forestry operations
Agriculture and forestry operations

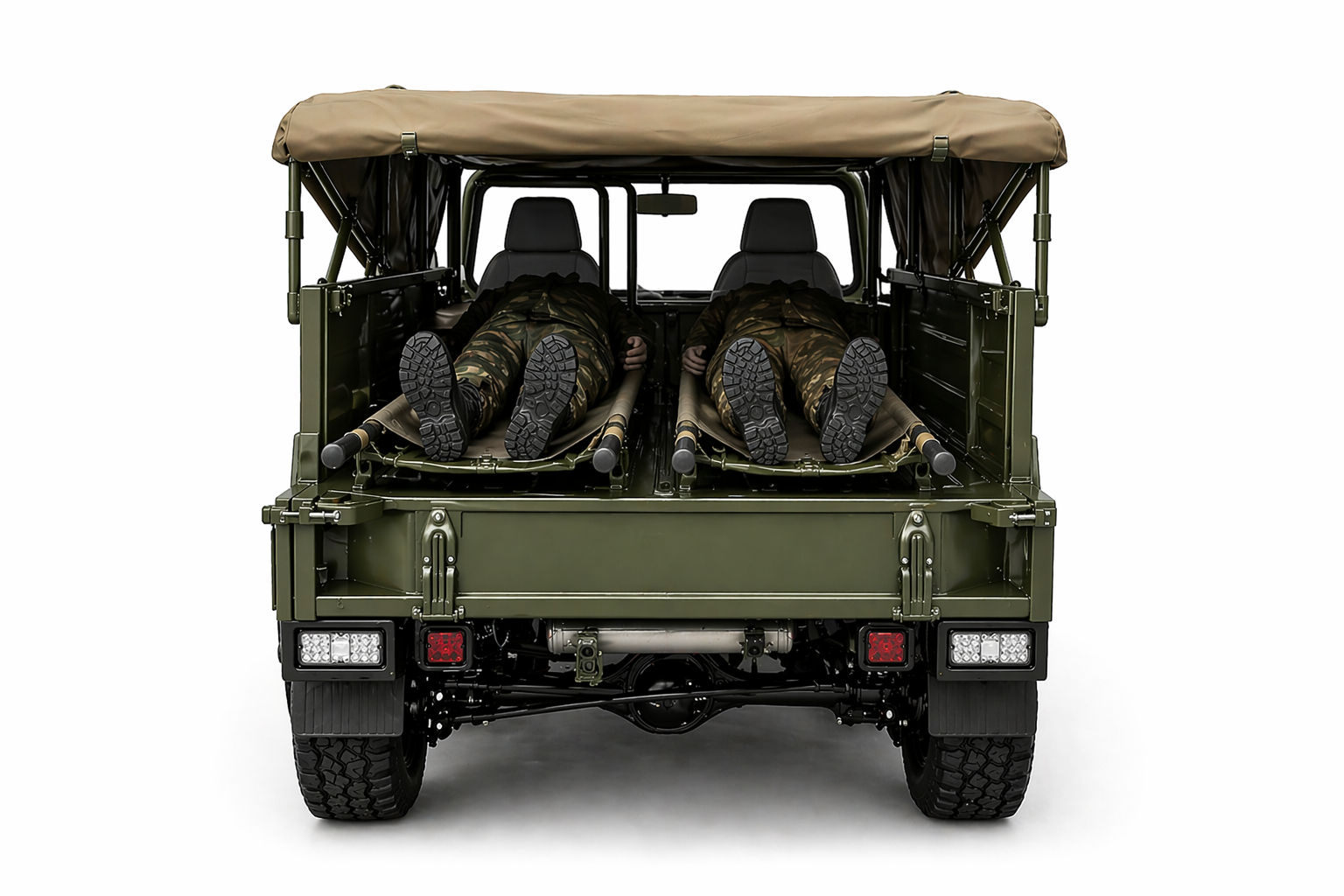

Transportation of teams to remote locations
Transportation of teams to remote locations

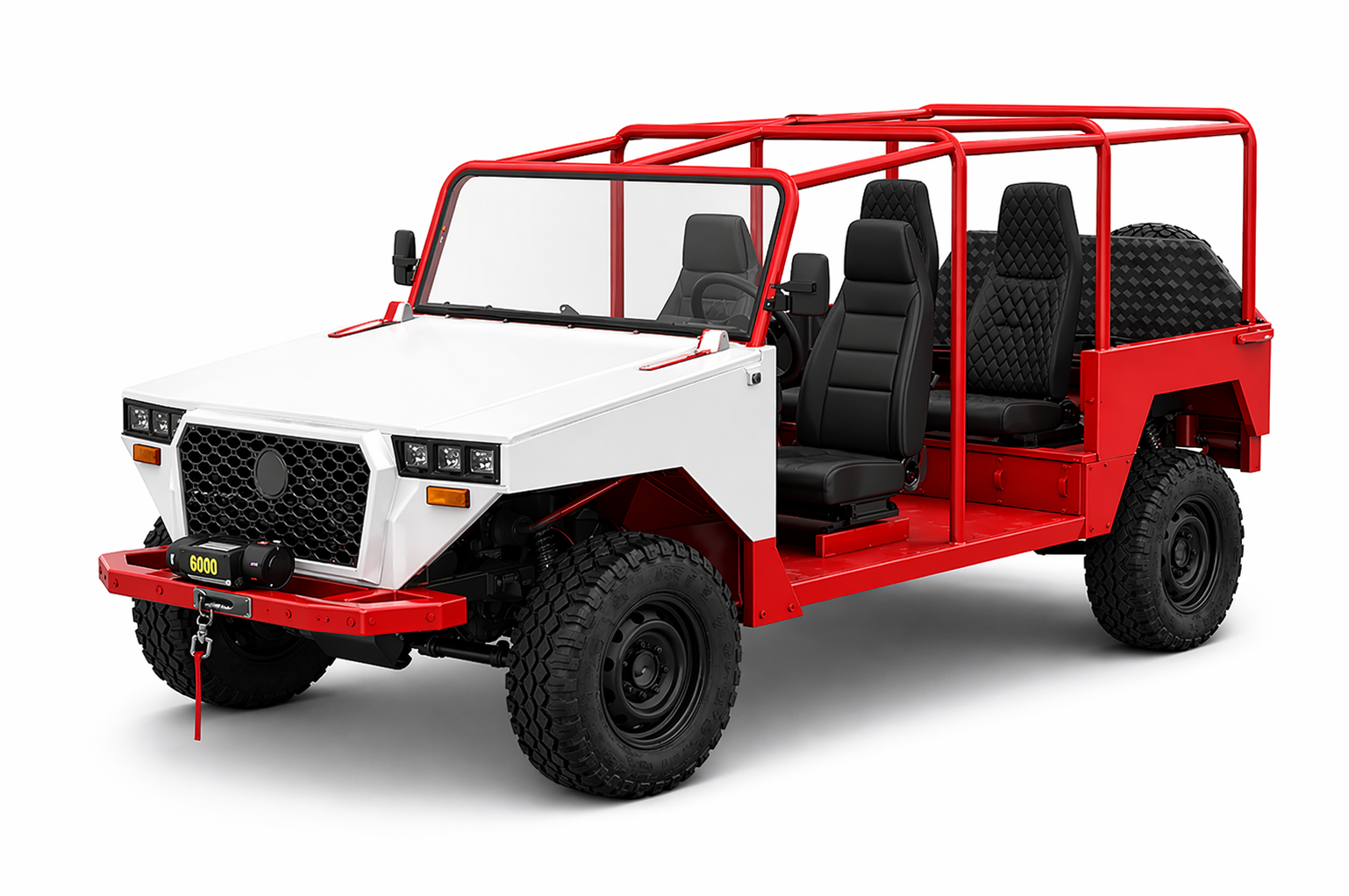

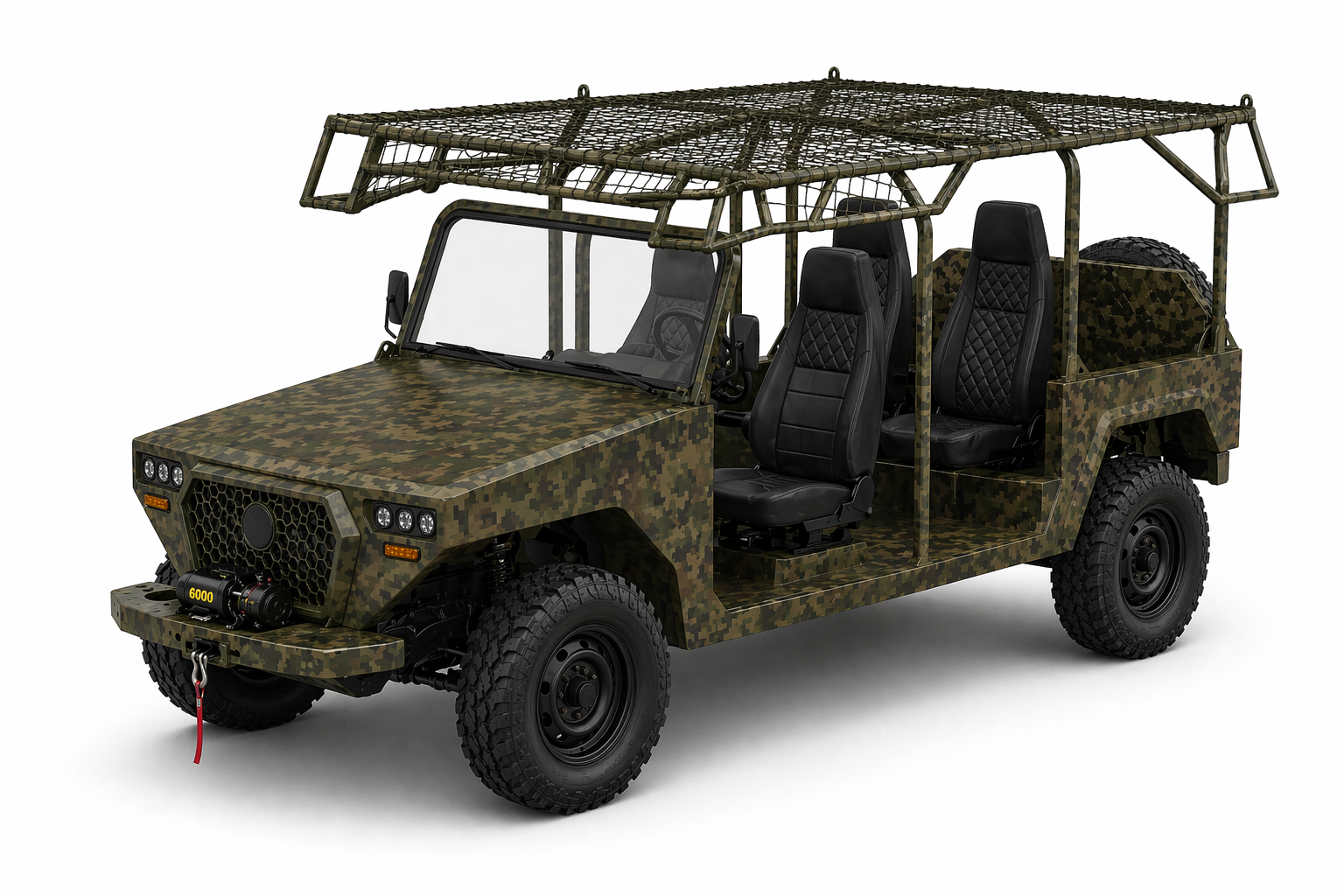

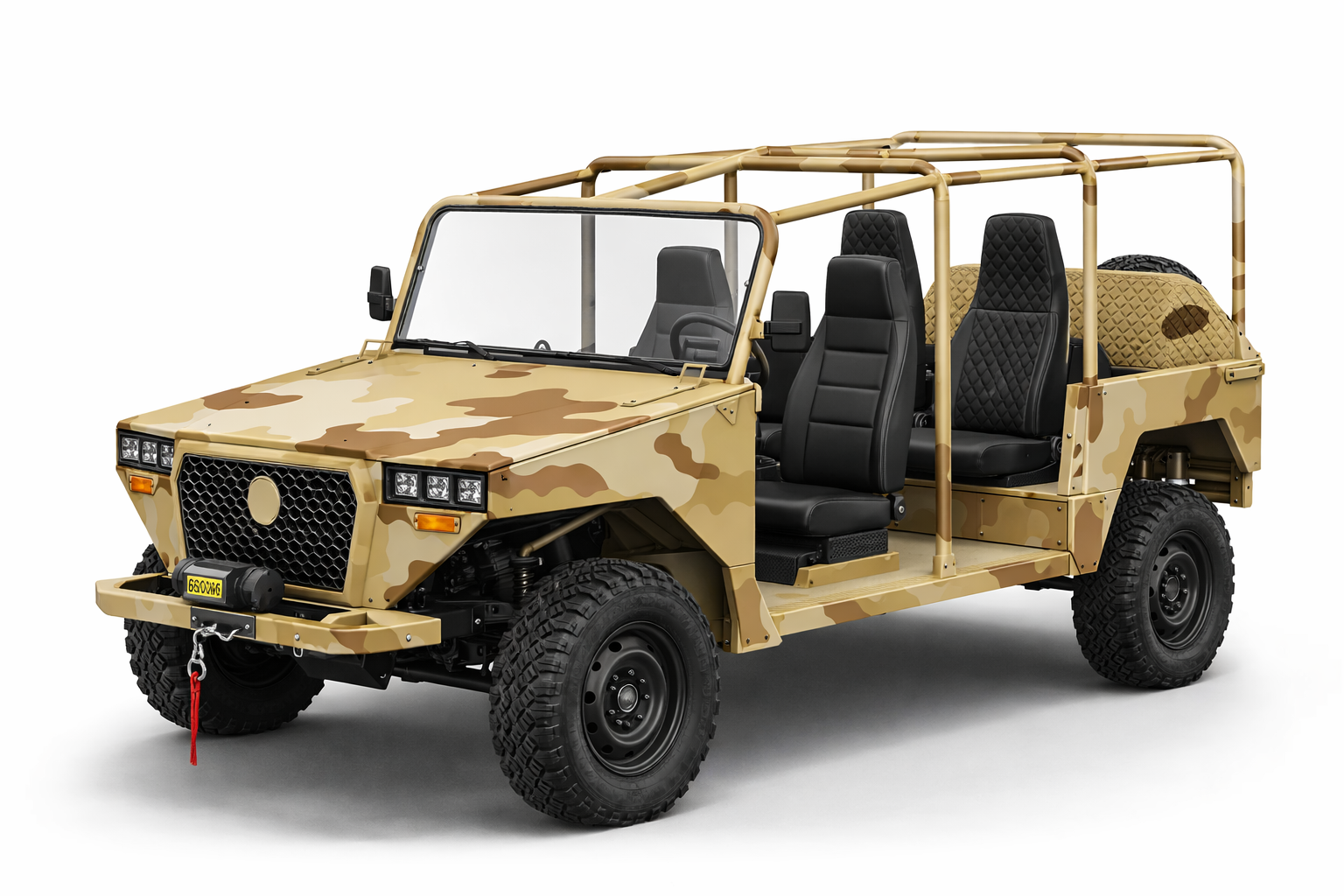

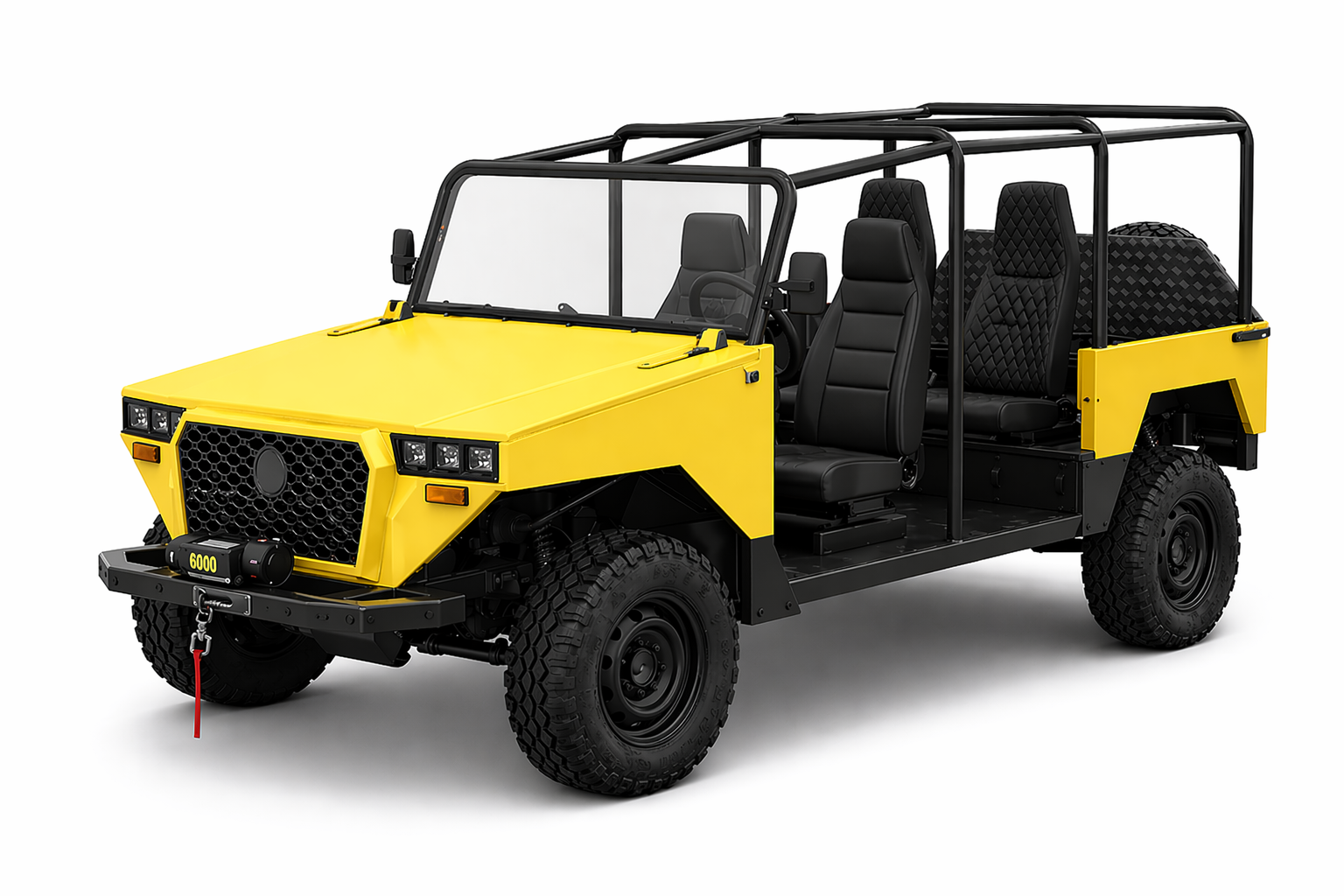

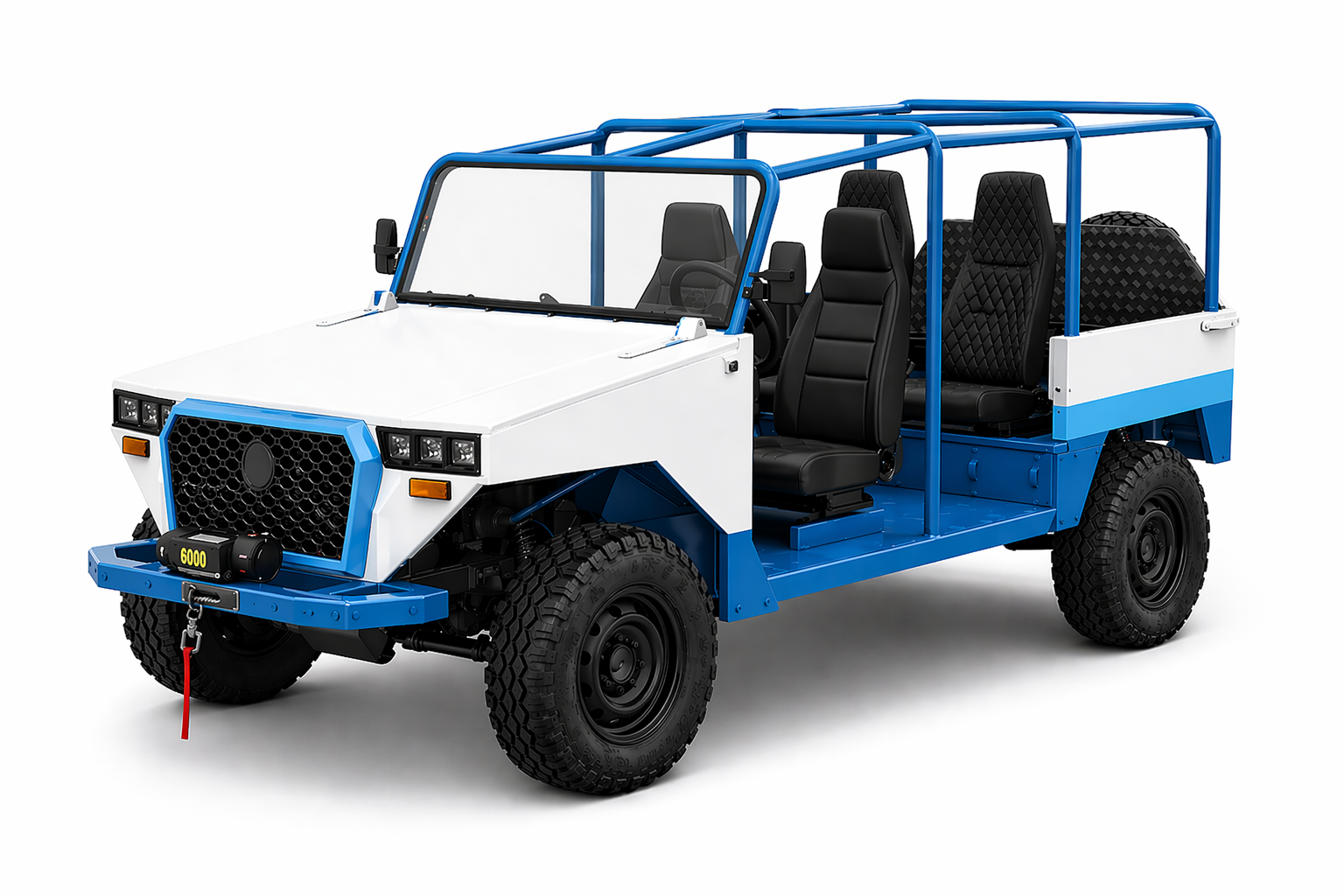

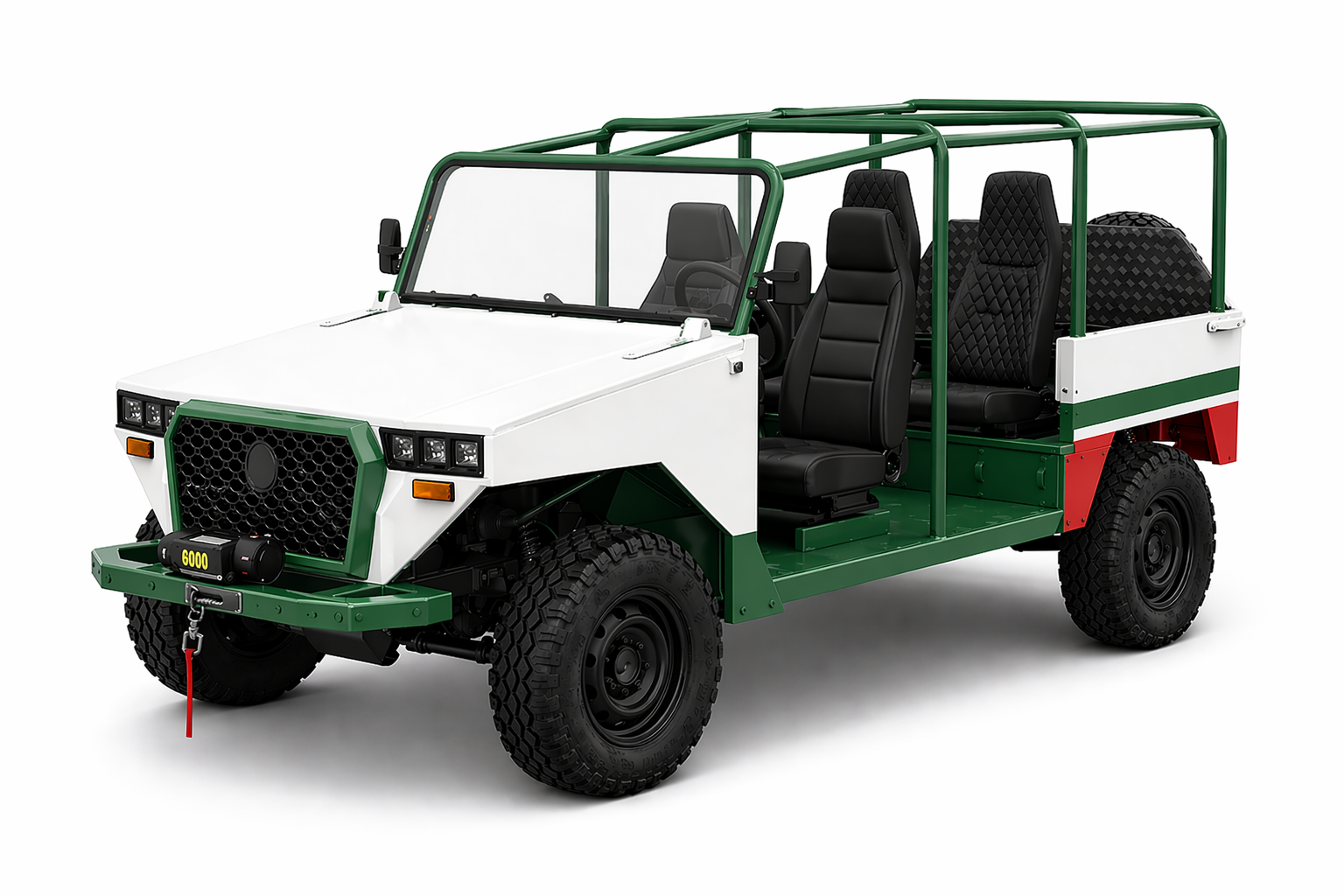

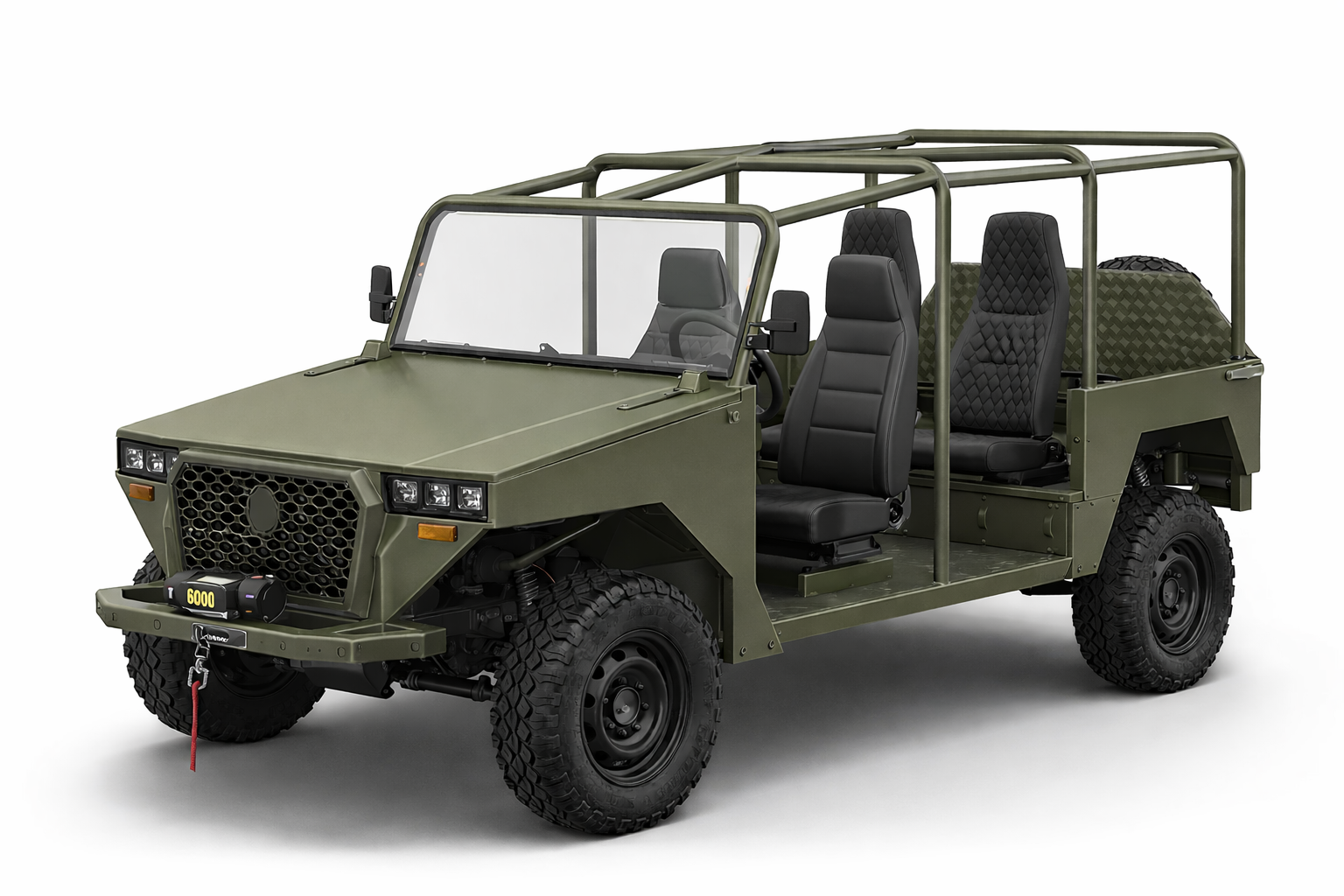

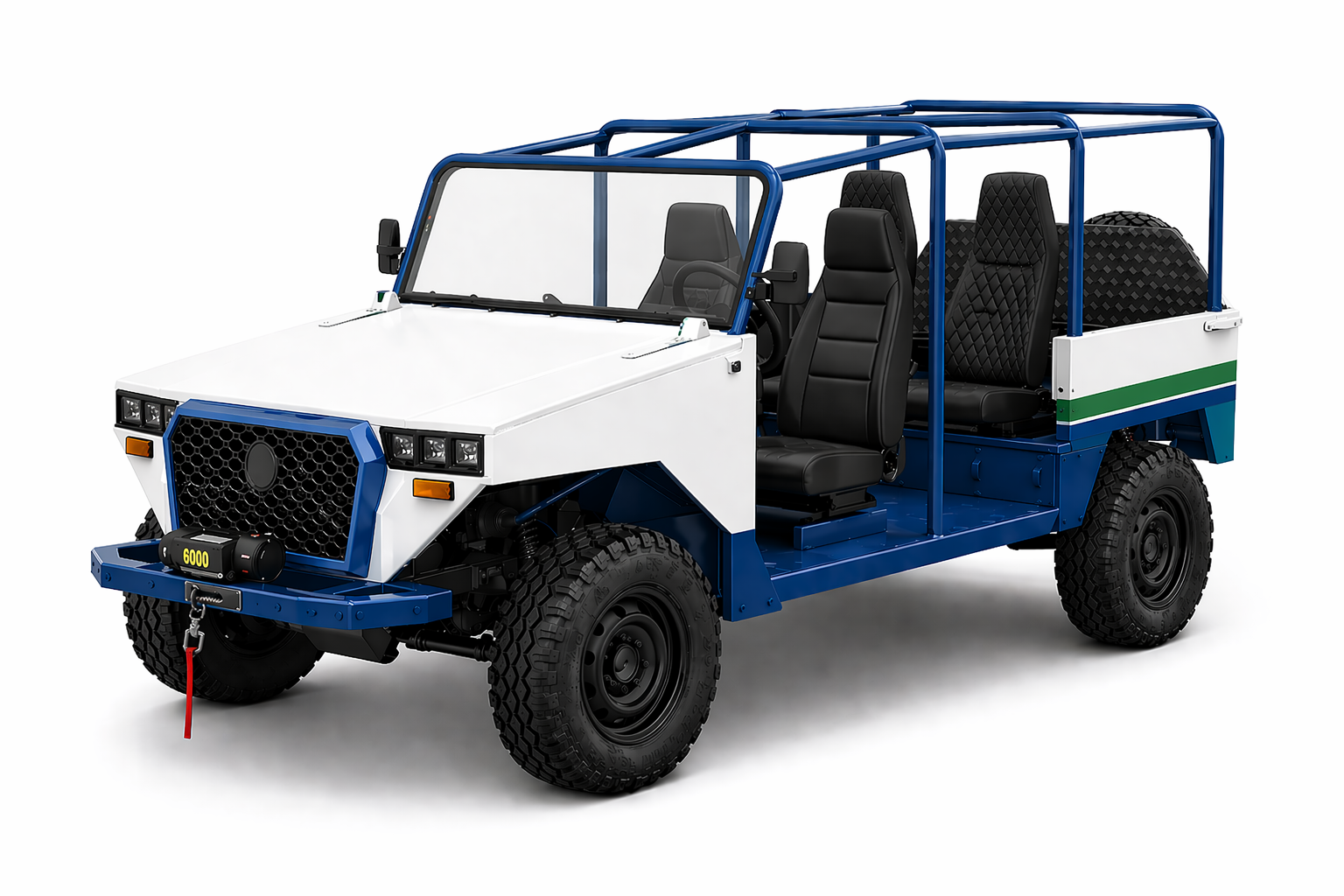

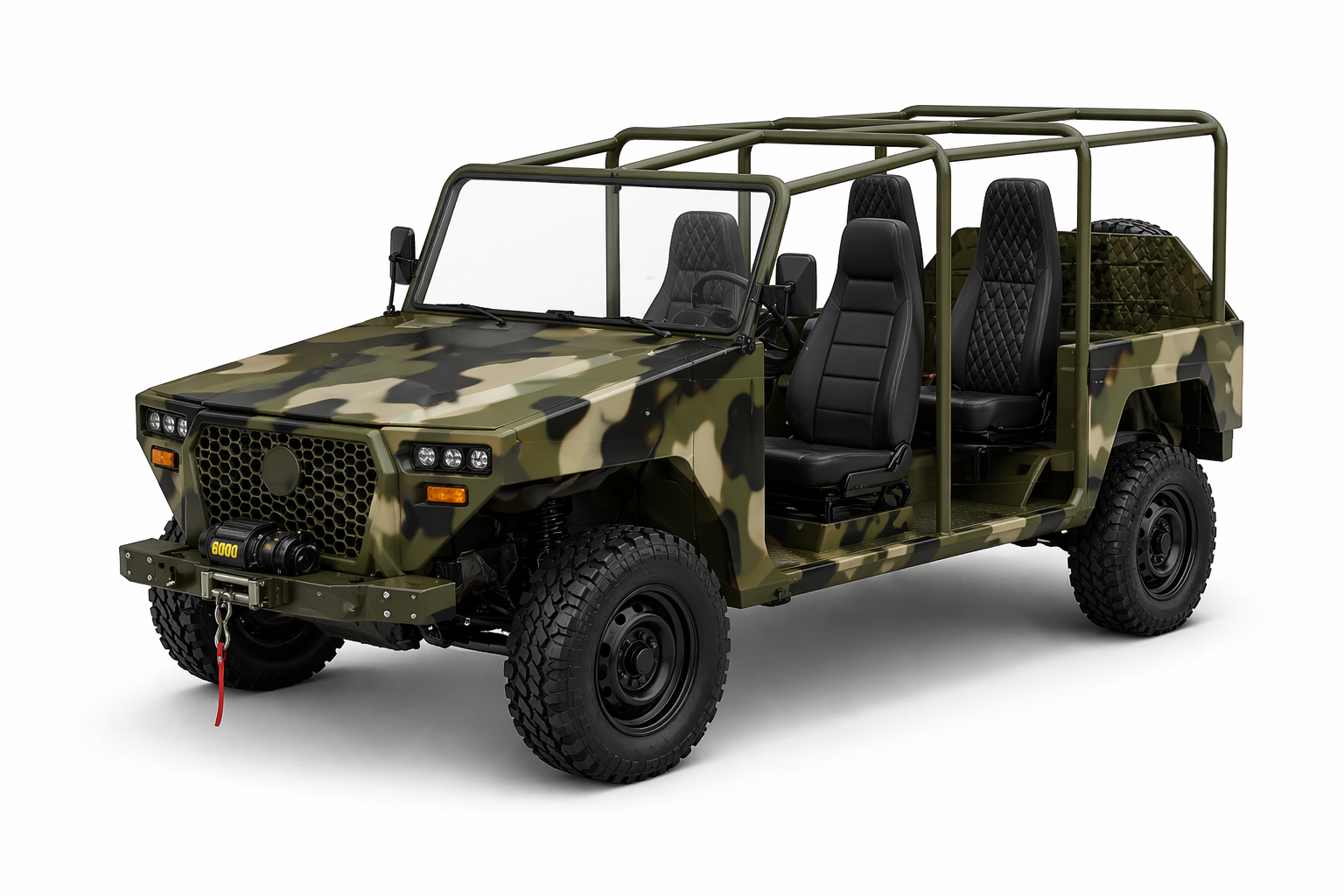

IRBIS 420

Choose a Project Created Specifically for You

We will build an off-road buggy tailored to your goals.

Our engineering and design center will help you create a vehicle that fully matches your requirements. Whether you need a powerful off-road machine, a comfortable travel vehicle, or a reliable work platform, we adapt every project to your needs — from exterior styling to technical specifications. You receive a unique off-road vehicle that reflects your tasks, preferences, and personal style.

Technical Specifications IRBIS 420

General Specifications

Parameter Specification
Crew Capacity 4
Dimensions (LxWxH), mm 3900х1680х1800
Wheelbase, mm 2700
Ground Clearance, mm 220-250
Curb Weight, kg 1100
Fuel Tank Capacity, L 42
Approach Angle 40
Departure Angle 70
Breakover Angle 25

Performance Specifications

Parameter Specification
Payload Capacity, kg 500
Maximum Trailer Weight, kg 600
Winch Pulling Force, kg 1225
Maximum Speed, km/h 120
Fuel Consumption per 100 km 8.3 L highway / 12.1 L city / 9.9 L combined

Technical Characteristics

Parameter Specification
Engine Type / Displacement Inline 4-cylinder gasoline engine, VAZ-21214, 1.7 L
Engine Power 82,9
Torque 129
Transmission 5-speed manual transmission
Front Suspension Independent double-wishbone spring suspension with telescopic shock absorbers and anti-roll bar
Rear Suspension Dependent suspension (solid axle with four longitudinal links and one transverse link, cylindrical springs, and telescopic shock absorbers)
Front Suspension Travel 80 mm compression / 75 mm rebound
Rear Suspension Travel 350 mm
Tire Size 235/75 R15

Contact Us Directly

For partnership inquiries, vehicle supply, pricing, or technical consultations, contact the IRBIS team directly by email: info@irbis-buggy.com
