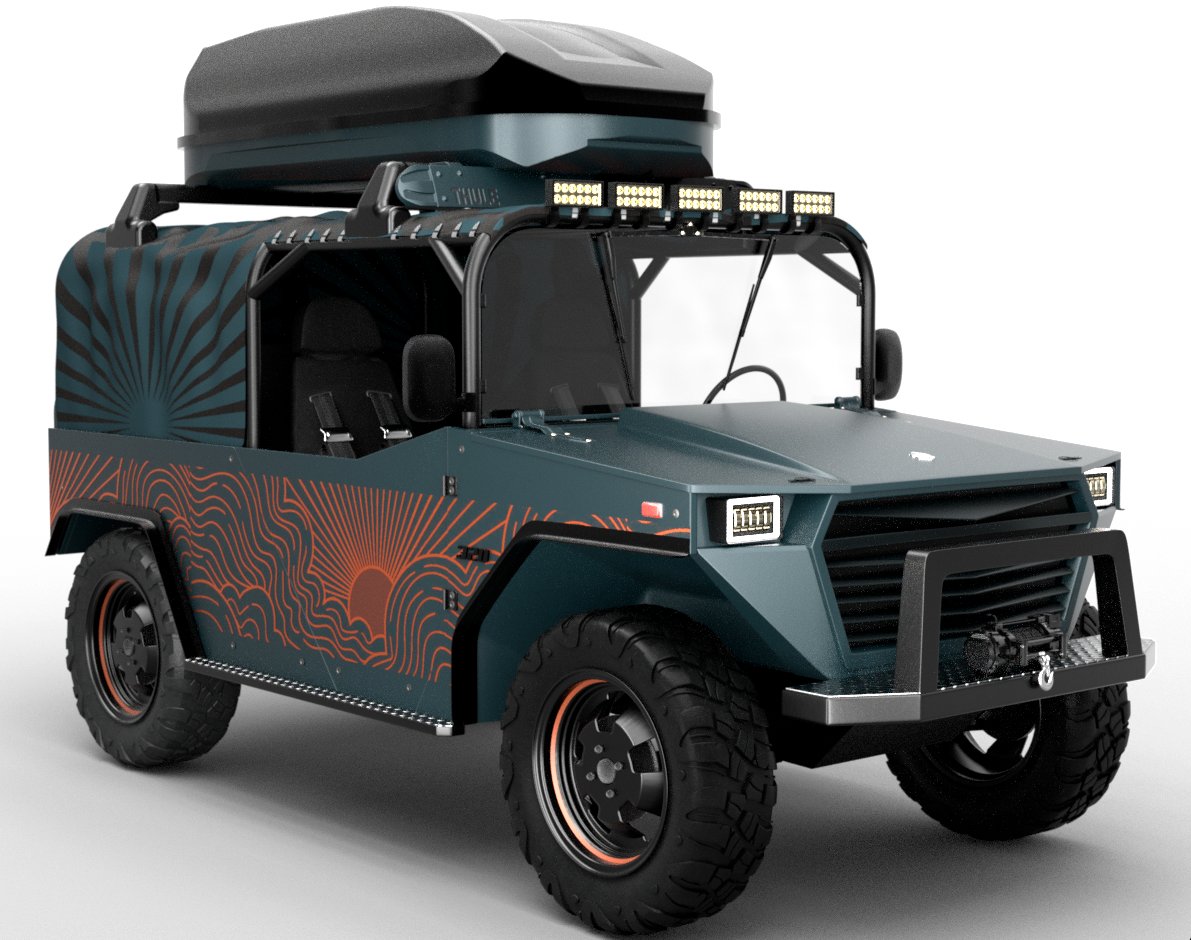

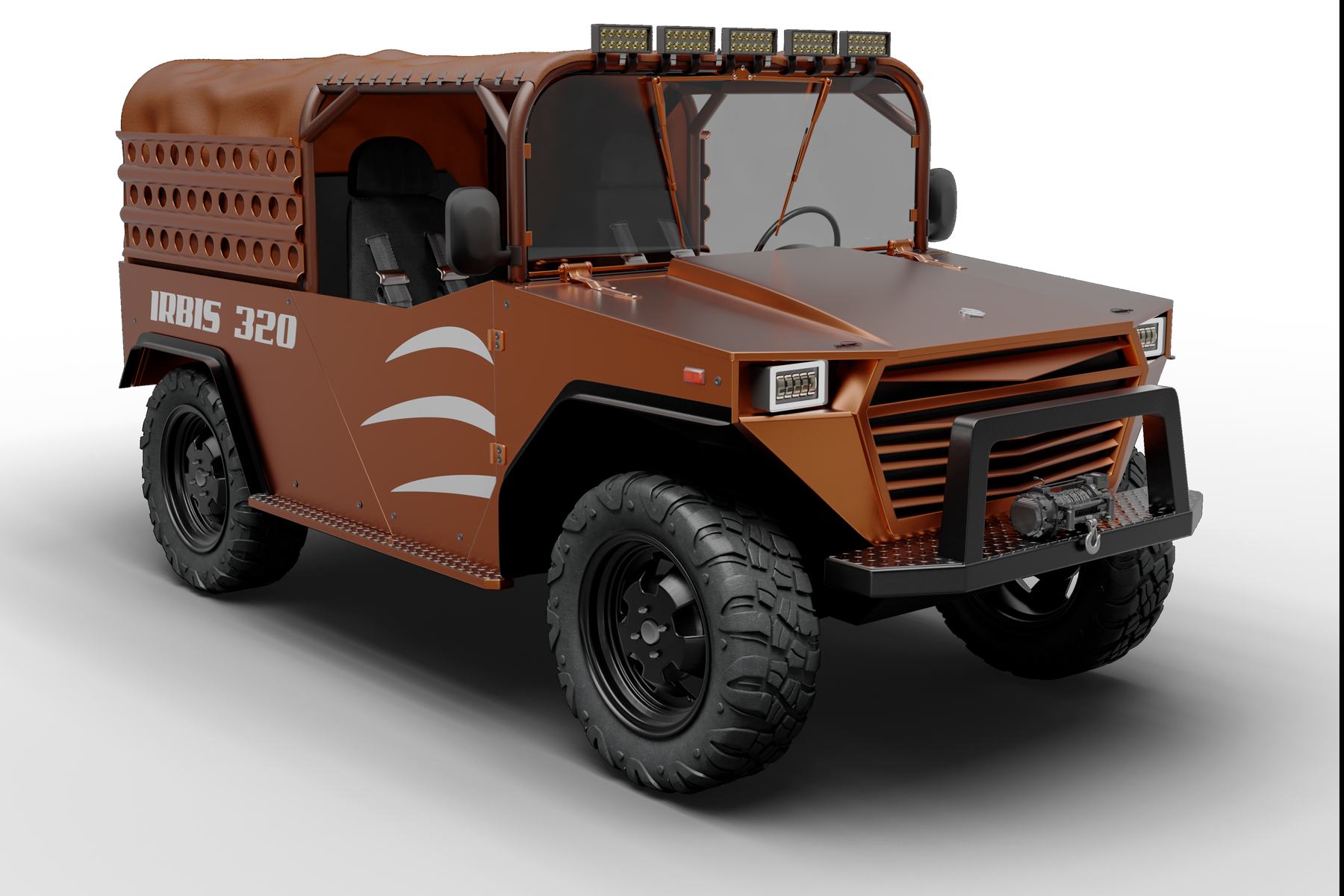

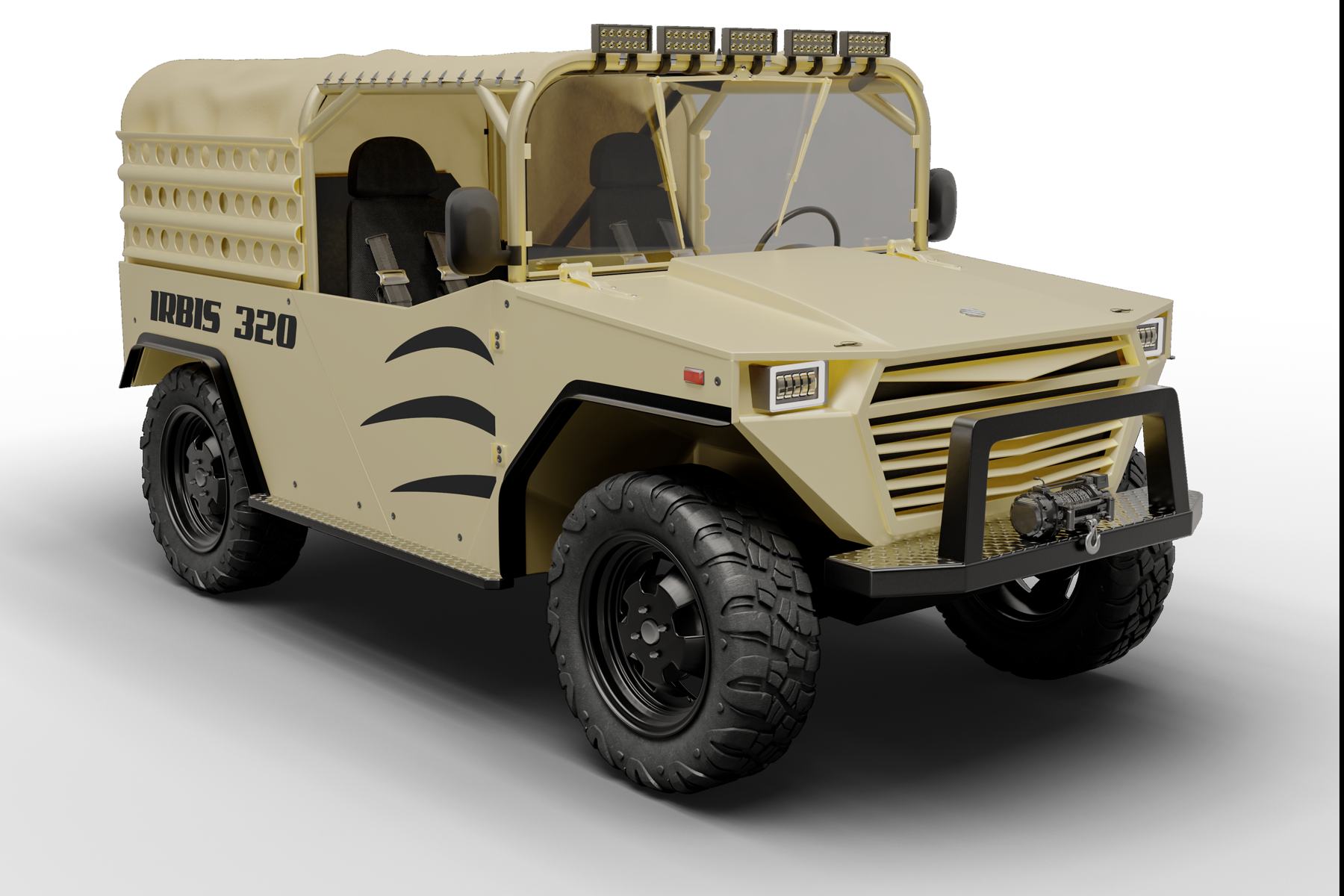

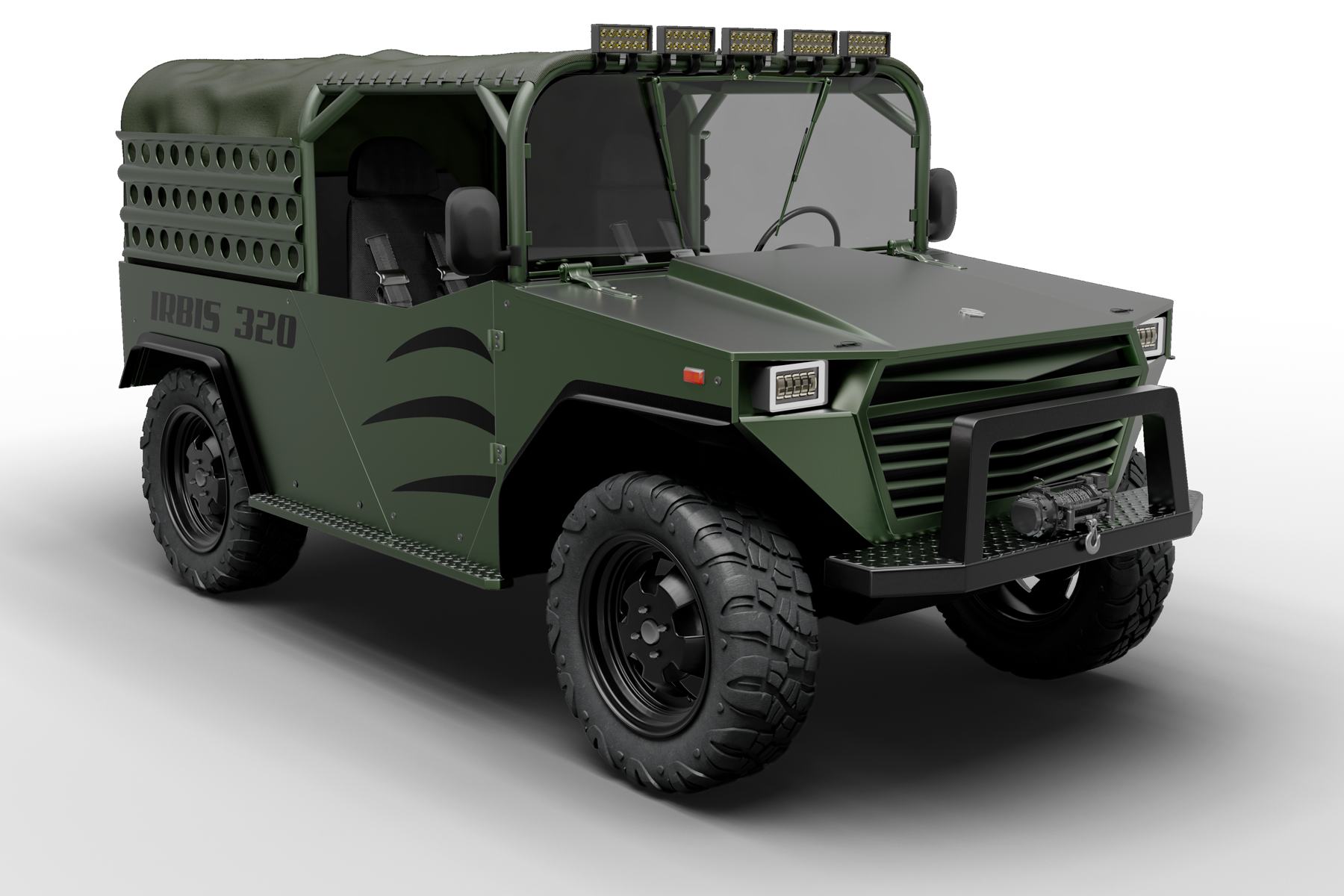

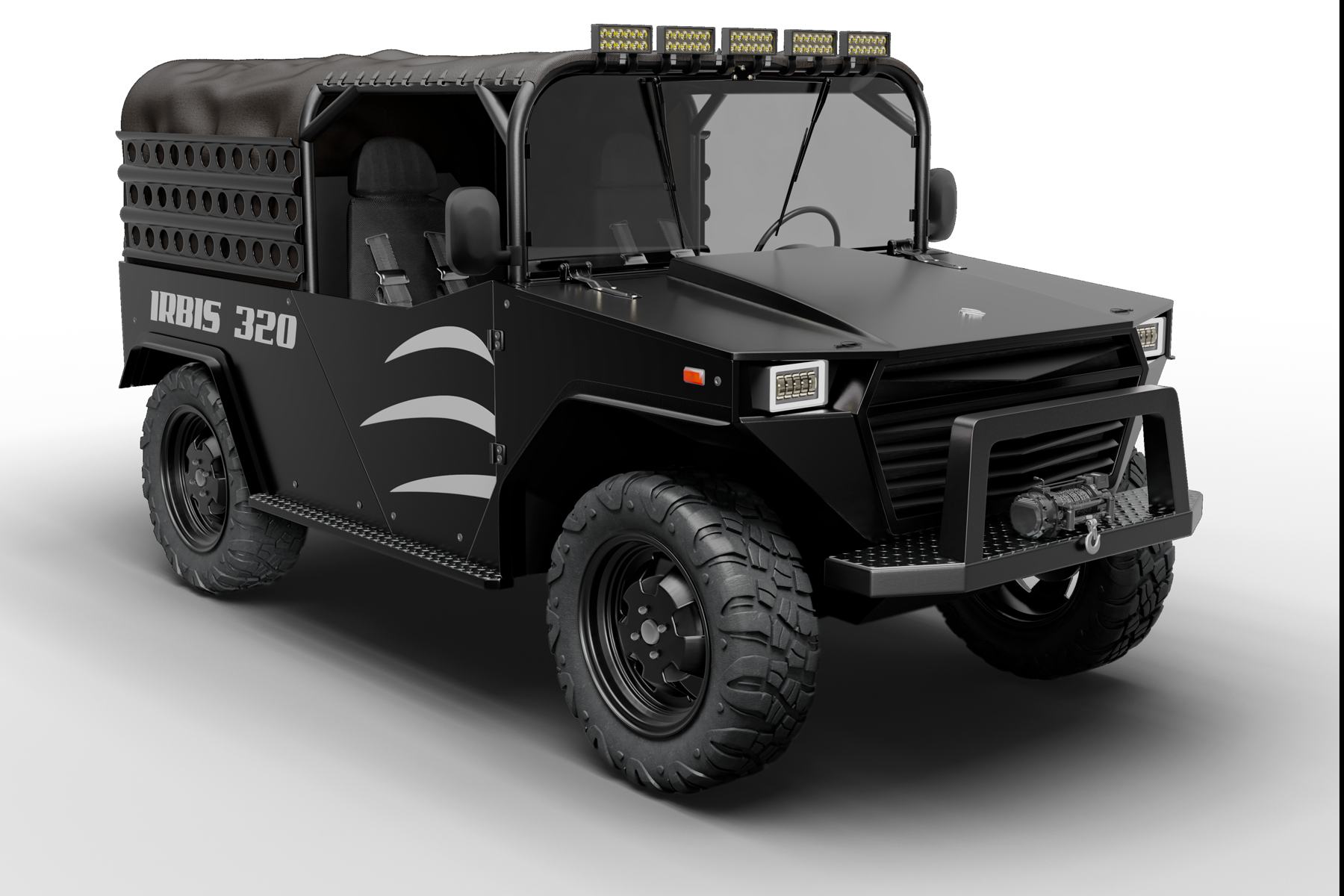

IRBIS 320 — Compact All-Terrain Vehicle

Power
82,9 hp

PAYLOAD CAPACITY
600 kg

GROUND CLEARANCE
220-250 mm

3D-обзор

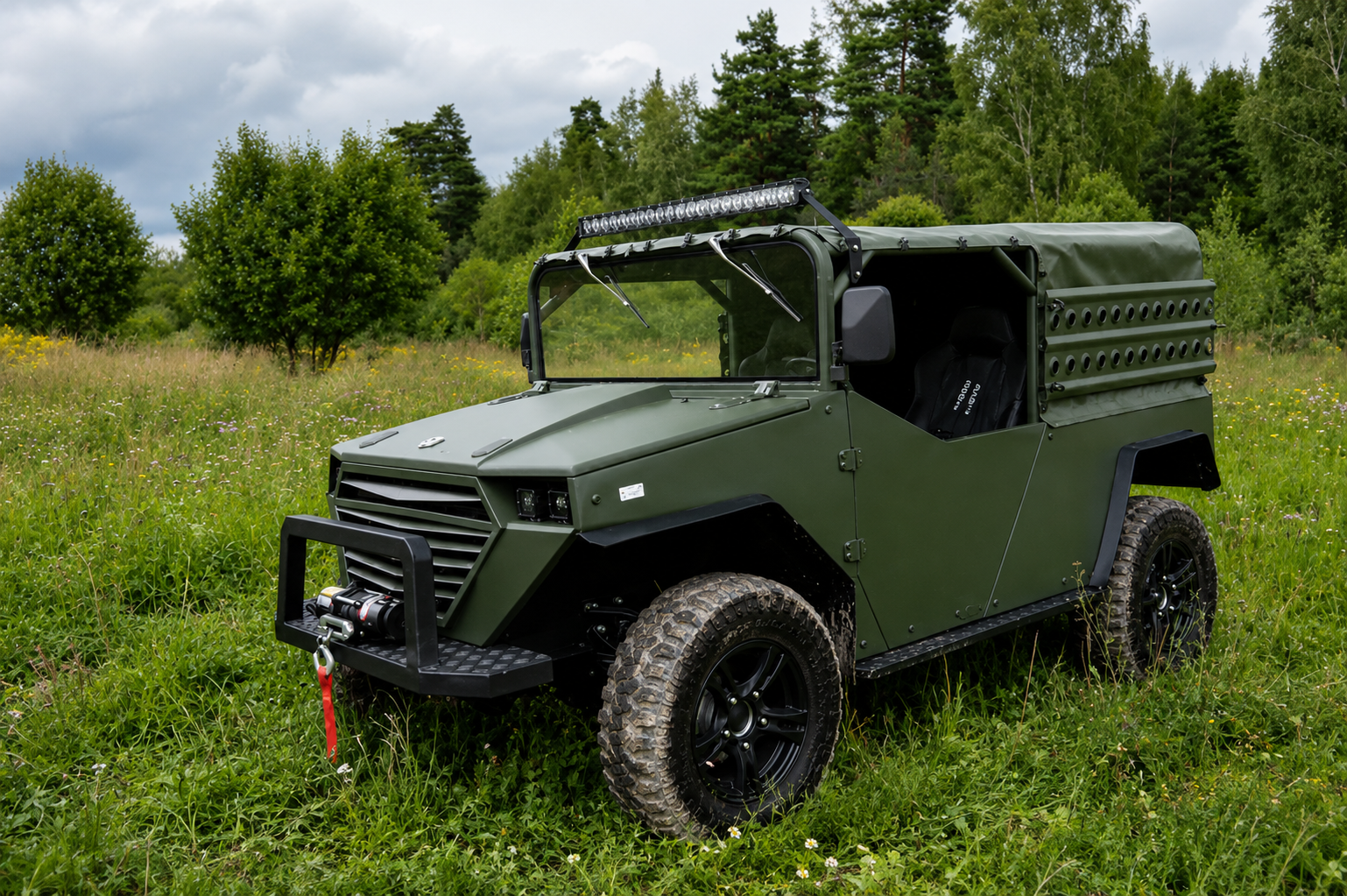

FROM AIRBORNE HEIGHTS TO OFF-ROAD TERRAIN — THE IRBIS 320 IS BUILT FOR ANY LANDSCAPE

Interested in this model?

Test Drive

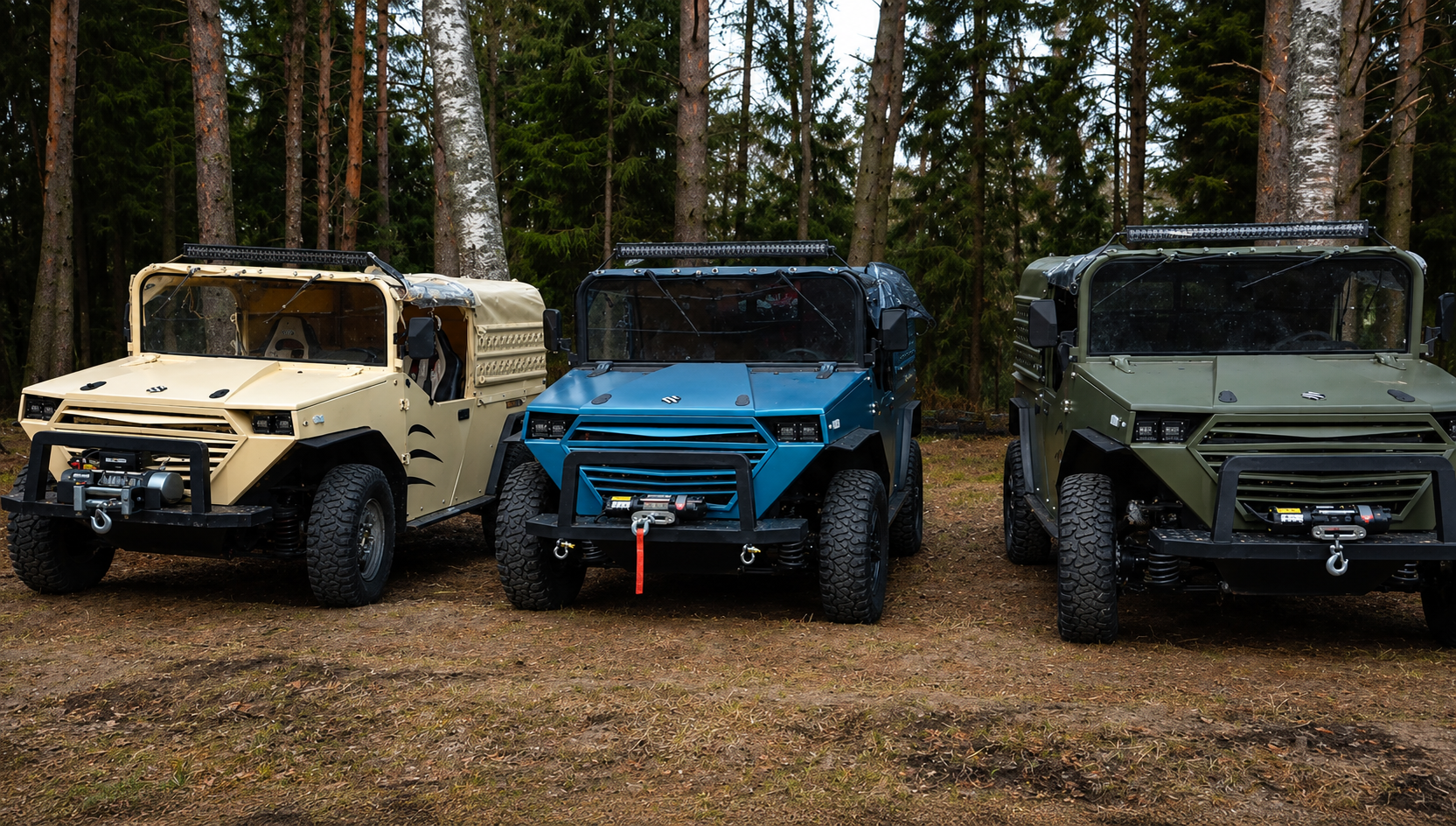

IRBIS 320 — PROVEN IN MOTION

Experience the power and maneuverability of our vehicles during exciting test drives. Watch dynamic videos of IRBIS vehicles conquering off-road terrain and sign up for your own adventure ride.

Превью видео

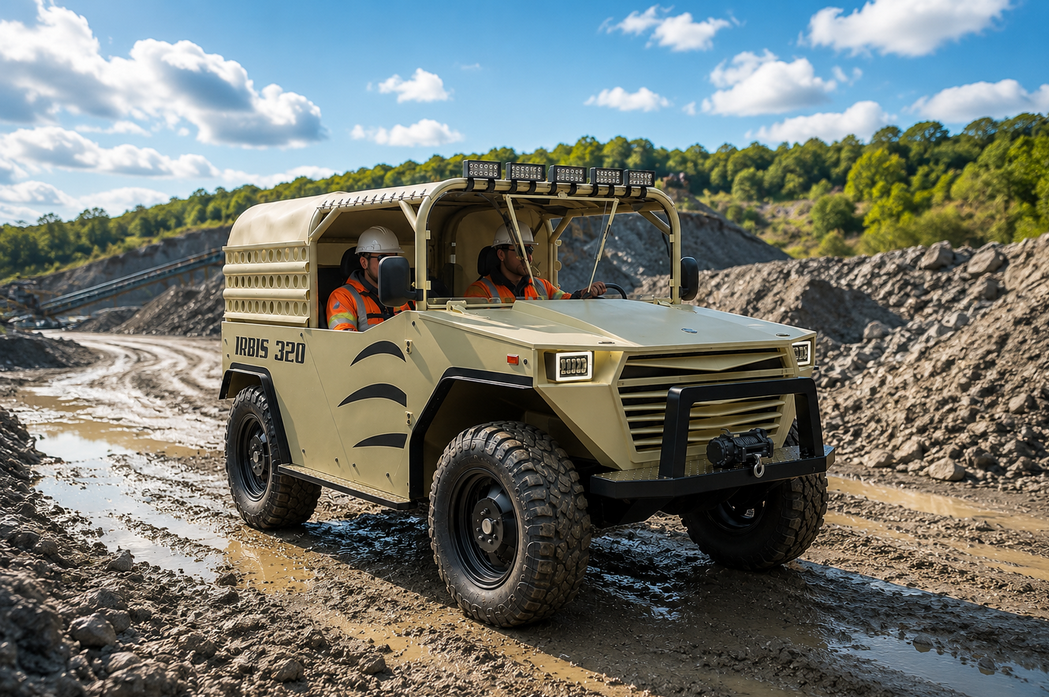

IRBIS 320 IS IDEAL FOR:

Operation in challenging terrain
Operation in challenging terrain
Patrolling and mobile tasks
Patrolling and mobile tasks
Expeditions and off-grid routes
Expeditions and off-grid routes
Operations beyond road infrastructure
Operations beyond road infrastructure
Tourist and service facilities
Tourist and service facilities
Area security and escort support
Area security and escort support
IRBIS 320

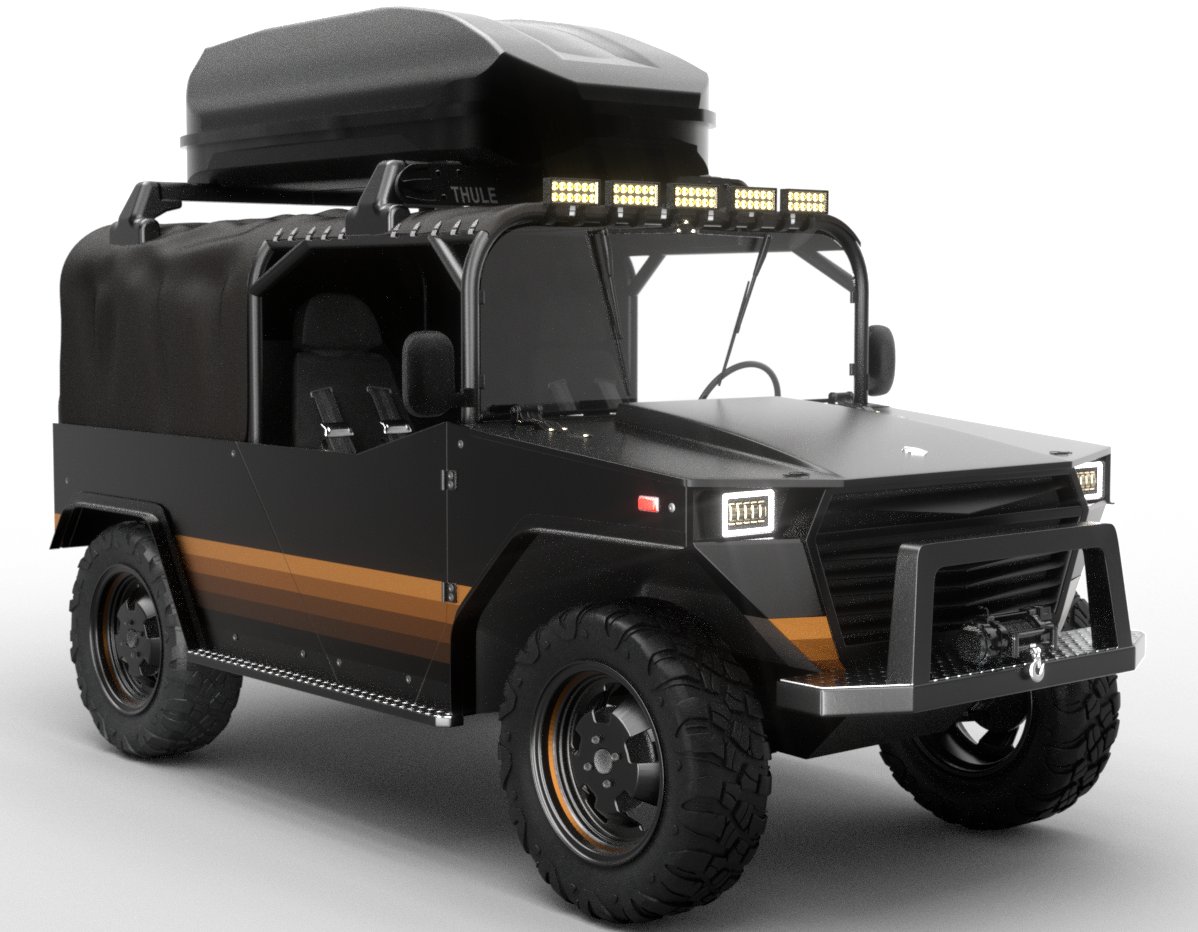

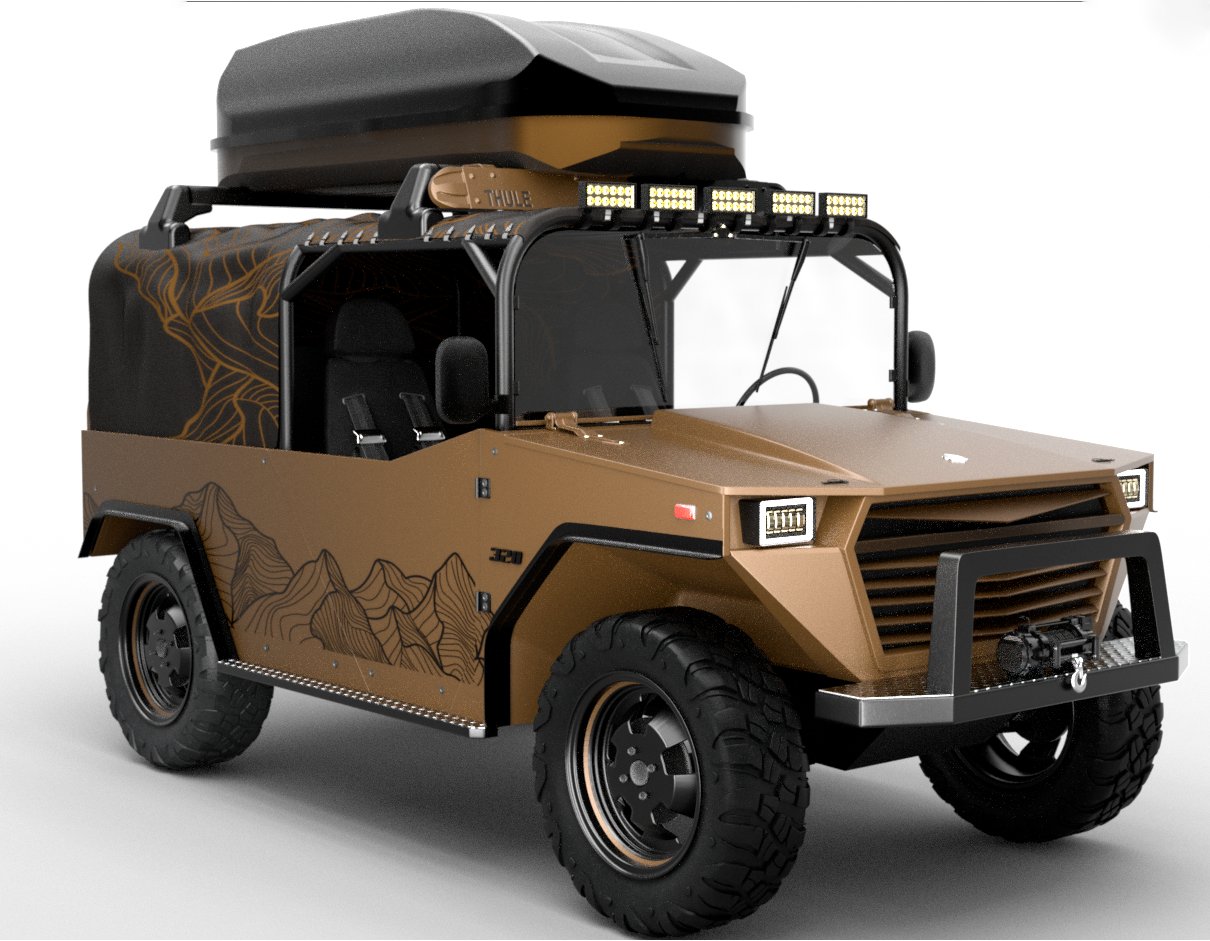

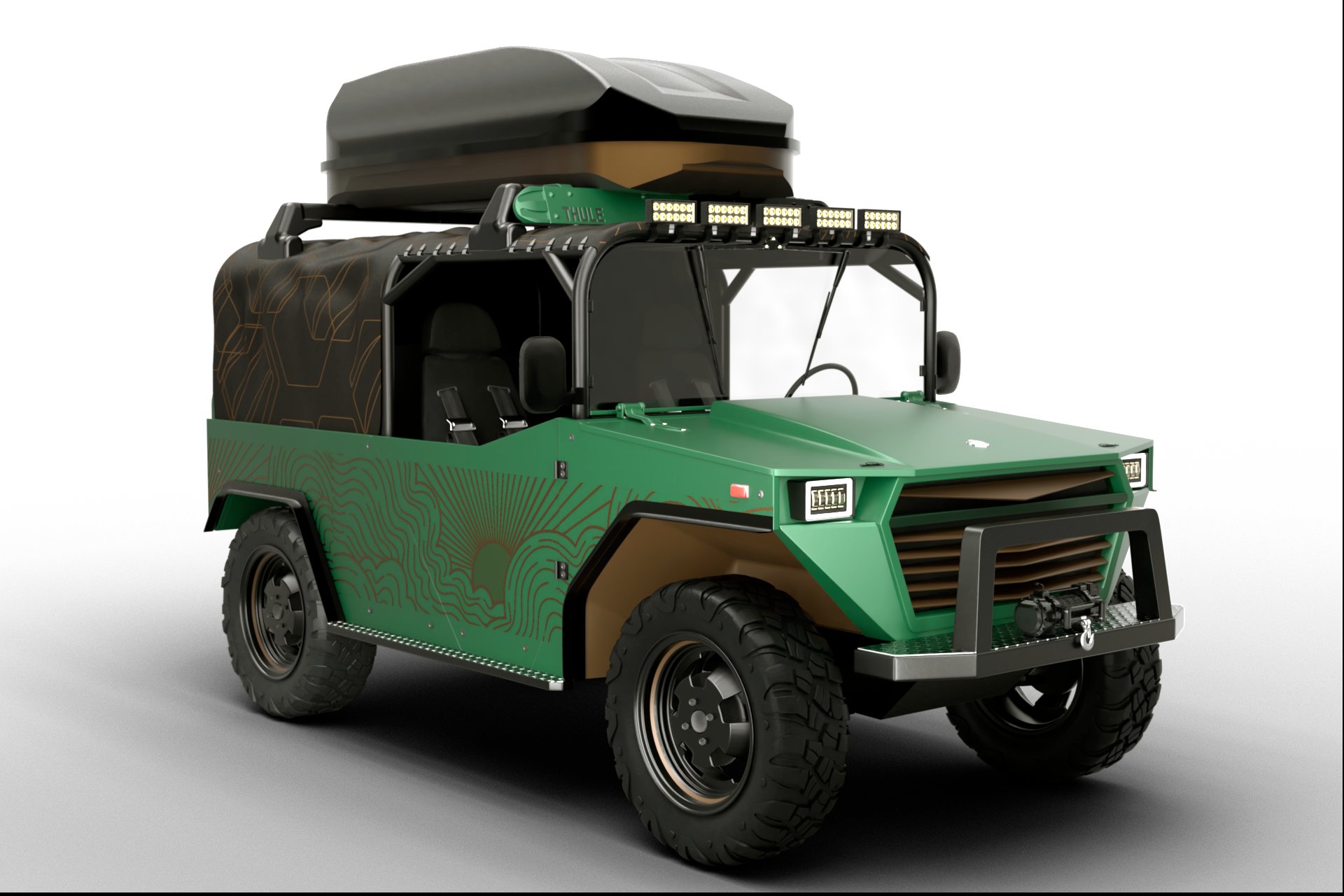

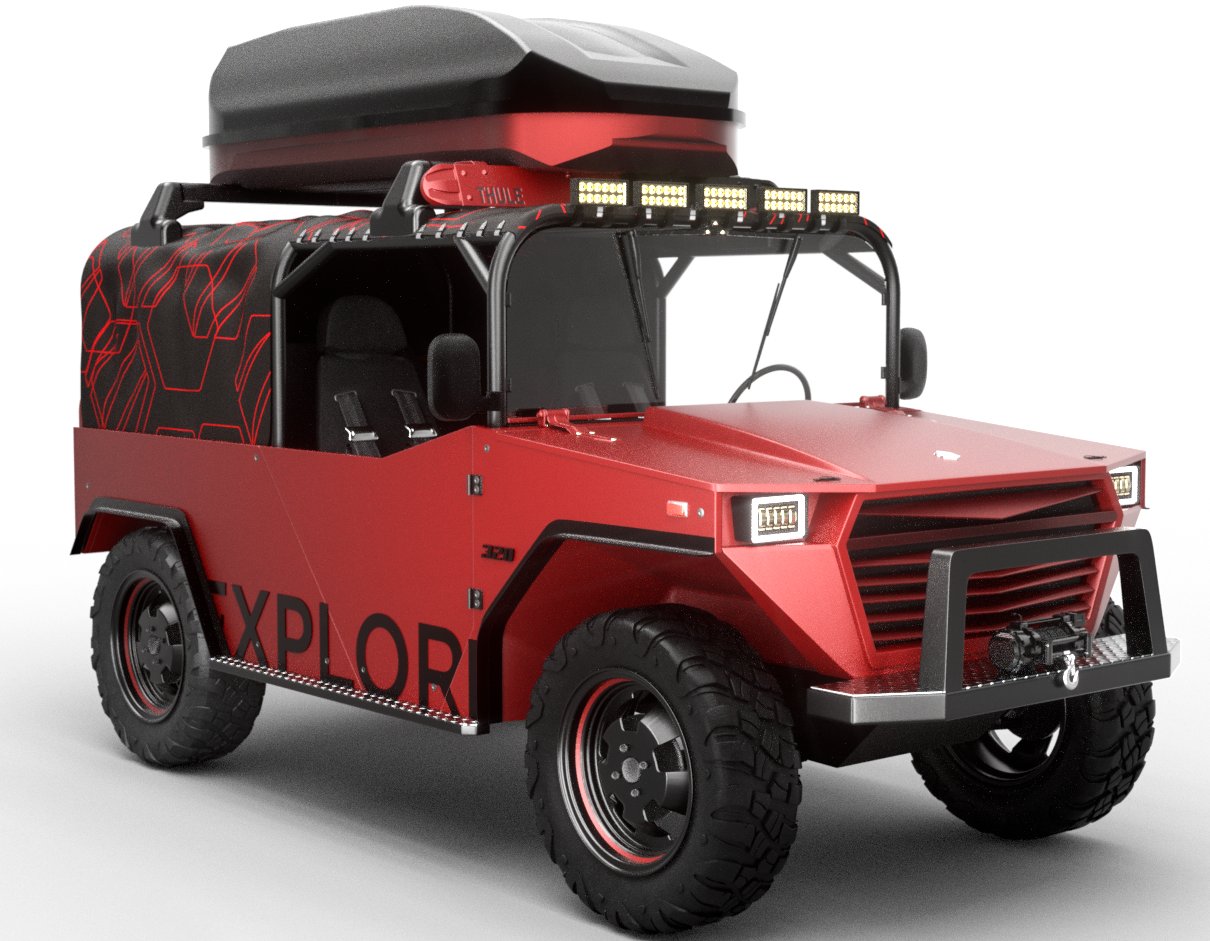

Choose a Project Created Specifically for You

We will build an off-road buggy tailored to your goals. Our engineering and design center will help you create a vehicle that fully matches your requirements. Whether you need a powerful off-road machine, a comfortable travel vehicle, or a reliable work platform, we adapt every project to your needs — from exterior styling to technical specifications.
You receive a unique off-road vehicle that reflects your tasks, preferences, and personal style.

Technical Specifications IRBIS 320

General Specifications

Parameter Specification
Crew Capacity 2
Dimensions (LxWxH), mm 3400х1680х1800
Wheelbase, mm 2200
Ground Clearance, mm 220-250
Curb Weight, kg 1000
Fuel Tank Capacity, L 42
Approach Angle 40
Departure Angle 70
Breakover Angle 28

Performance Specifications

Parameter Specification
Payload Capacity, kg 600
Maximum Trailer Weight, kg 600
Winch Pulling Force, kg 1225
Maximum Speed, km/h 120
Fuel Consumption per 100 km 8.3 L highway / 12.1 L city / 9.9 L combined

Technical Characteristics

Parameter Specification
Engine Type / Displacement Inline 4-cylinder gasoline engine, VAZ-21214, 1.7 L
Fuel Type Gasoline, AI-95
Engine Power 82,9
Torque 129
Transmission 5-speed manual transmission
Front Suspension Independent double-wishbone spring suspension with telescopic shock absorbers and anti-roll bar
Rear Suspension Dependent suspension (solid axle with four longitudinal links and one transverse link, cylindrical springs, and telescopic shock absorbers)
Front Suspension Travel 80 mm compression / 75 mm rebound
Rear Suspension Travel 350 мм
Total Suspension Travel 155 /170
Tire Size 235/75 R15
